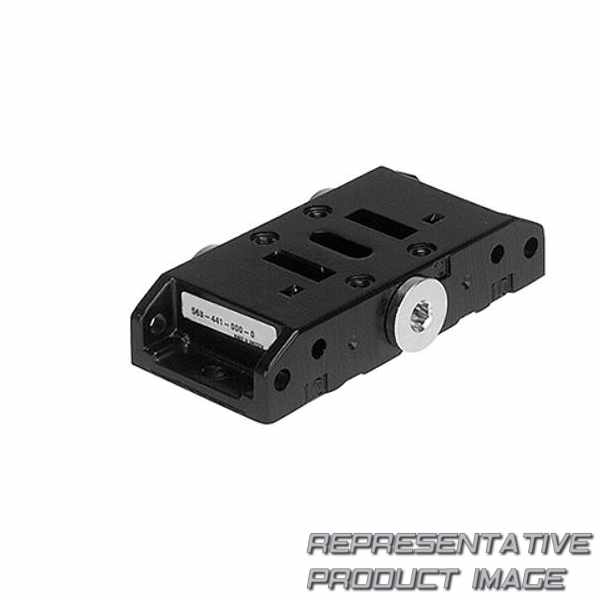

| Typ | base plate | ||
| compressed air connection 1 | g 1/4 | ||
| compressed air connection 2 / 4 | g 1/4 | ||
| port 3 / 5 | g 1/4 | ||
| direction of pneumatic port (14) | down | ||
| working pressure min. | -1 bar | ||
| min. ambient temperature | -20 °c | ||
| min. medium temperature | -20 °c | ||
| Medium | compressed air | ||
| Gewicht | 0.16 kg |
| direction of pneumatic port (1) | down | ||
| direction of pneumatic port (2,4) | down | ||
| direction of pneumatic port (3,5) | down | ||
| direction of pneumatic port (12) | down | ||
| compressed air connection 14 | g 1/8 | ||
| working pressure max | 30 bar | ||
| max. ambient temperature | 120 °c | ||
| max. medium temperature | 120 °c | ||
| Max. number of valve positions | 1 | ||
| Material base plate | die-cast aluminum |
