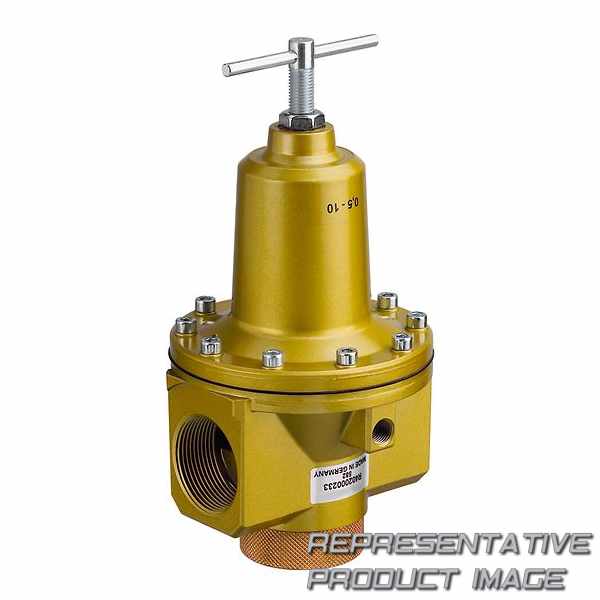

| Funktion | standard pressure regulator | ||
| pressure gauge | without pressure gauge | ||
| regulator type | diaphragm-type pressure regulator | ||
| nominal flow qn | 16500 l/min | ||
| regulation range max. | 10 bar | ||
| working pressure max | 25 bar | ||
| max. ambient temperature | 60 °c | ||
| regulator function | with relieving air exhaust | ||
| Medium | compressed air, neutral gases | ||
| Gehäusematerial | die-cast aluminum |
| parts | pressure regulator | ||
| mounting orientation | any | ||
| port | g 1 1/2 | ||
| regulation range min. | 0.5 bar | ||
| working pressure min. | 0.5 bar | ||
| min. ambient temperature | -10 °c | ||
| activation | mechanical | ||
| pressure supply | single | ||
| Gewicht | 2.5 kg | ||
| seal material | acrylonitrile butadiene rubber |
