REXROTH R201111306 ball runner block resist nrii

Name: R201111306 REXROTH
Brand: REXROTH
SKU: 301594-de-eur
Price: 158.77 EUR
Availability: InStock

KWD-015-SNS-C1-H-0

158,77 €

13 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Area of application: For restricted space in transverse direction
Long-term lubrication is possible over several years
All metal parts are made from corrosion-resistant steel
Significantly reduced frictional oscillations and low friction level, particularly under external load
Patented entry zone increases the travel accuracy up to a factor of six

Baureihe (R2011)	Slimline, normal, standard height R2011
Baugröße (1)	15
Vorspannungsklasse (1)	C1 Moderate preload

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (06)	SS Standard seal with ball chain

Nennweite		15
Werkstoff Profilschienführungen		Corrosion resistant steel
Genauigkeitsklasse		H – High precise

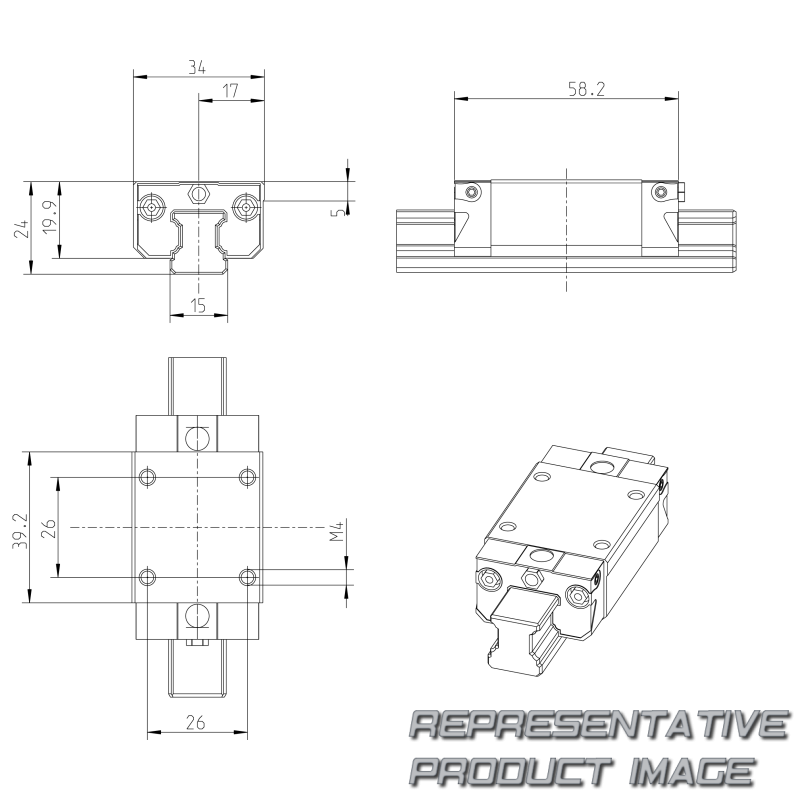

Breite Führungswagen		34 mm
Höhe Führungswagen		19.9 mm
Schmierung		Without initial lubrication and without preservation
Fußnote dynamische Tragfähigkeit C		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Dynamische Torsionsmoment-Belastbarkeit Mt Fußnote		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Dynamische Längsmoment-Belastbarkeit ML Fußnote		Determination of the dynamic load capacities and load moments is based on a 100 000 m travel as per DIN ISO 14728-1. Often only 50 000 m are actually stipulated. For comparison: Multiply values C, Mt and ML from the table by 1.26.
Statisches Torsionstragmoment Mt0		81 Nm
Fußnote amax		If F_comb◡ 2.8 • F_pr : a_max = 50 m/s²
Dichtung		SS – Standard seal
Zulässige Umgebungstemperatur		0 °C ... +80 °C
Reibungszahl μ		0,002 ... 0,003

Bauform		SNS – Standard guide rail
Vorspannungsklasse		C1 moderate preload
Selbstausrichtend zur Kompensation von Fehlausrichtungen		Without self-alignment
Länge Führungswagen		58.2 mm
Höhe des Laufblocks mit Führungsschiene		24 mm
Dynamische Tragzahl C		4700 N
Dynamisches Torsionstragmoment Mt		58 Nm
Dynamisches Längstragmoment ML		31 Nm
Statisches Längstragmoment ML0		44 Nm
Max. Beschleunigung amax		500 m/s²
Maximal zulässige lineare Geschwindigkeit vmax		5 m/s
Statische Tragzahl C0		8400 N
Fußnote zulässige Umgebungstemperatur (min ... max)		Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us.
Reibungskoeffizient der Fußnote μ		Without friction of seal
