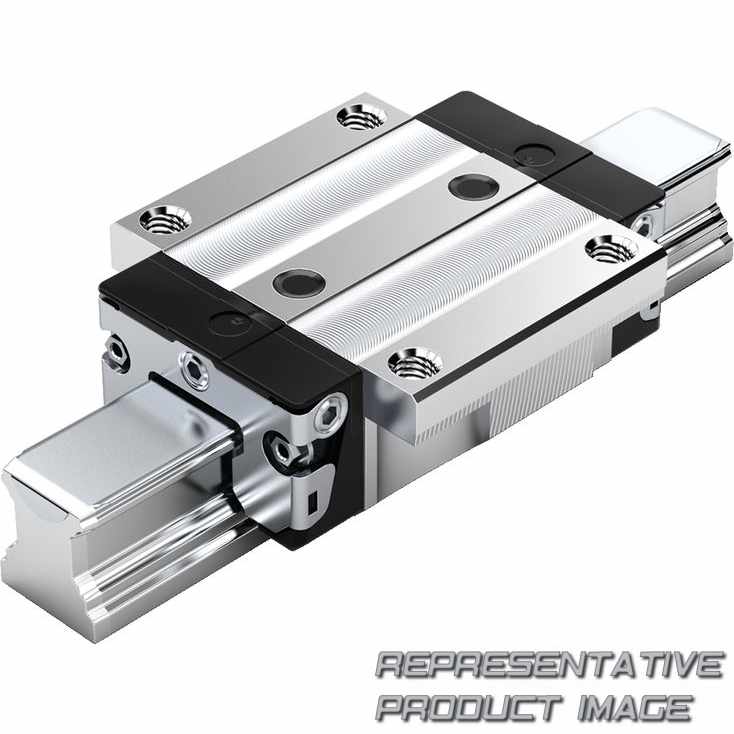

REXROTH R200112390 KUGELWAGEN HOCHGESCHWINDIGKEIT KOH.STAHL

Name: R200112390 REXROTH
Brand: REXROTH
SKU: 110831-de-eur
Price: 666.36 EUR
Availability: InStock

KWD-015-FNS-C2-H-1

666,36 €

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

Area of application: For maximum speeds
Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the center of the Ball Runner Block
Maximum system rigidity due to pre-tensioned O-arrangement
Electrically insulating due to use of ceramic balls
Attachments on the Ball Runner Block can be mounted from above and below

High speed ball runner block HS

Baureihe (R2001)	Flange, normal, standard height R2001
Baugröße (1)	15 size
Vorspannungsklasse (2)	C2 Average preload

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (90)	SS Standard seal without ball chain

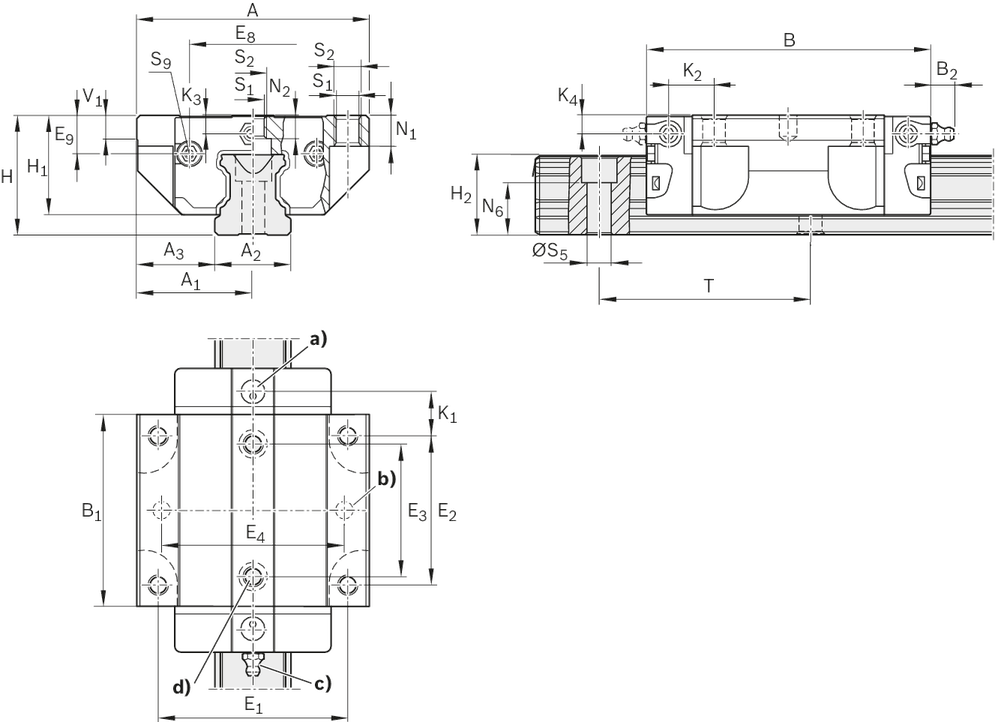

Dimensions
Technical data

^a) For O-ring
Size 15: Ø 4 · 1.0 (mm)
Size 20 - 35: Ø 5 · 1.0 (mm)
Open lube port if necessary (see general technical notes and information in the "Maintenance" section).
^b) Recommended position for pin holes (dimension E₄ see general technical notes and information in the "Installation" section)
Rough-drilled holes may be present here from manufacturing. These may be bored open.
^c) Lube nipple, size 15 - 20:
Funnel-type lube nipple DIN 3405-A M3x5, B₂ = 1.6 mm
When using different lube nipples, pay attention to the screw-in depth of 5 mm!
Lube nipple, size 25 - 35:
Hydraulic-type lube nipple DIN 71412-A M6x8, B₂ = 9.5 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on all sides.
^d) Sealing plugs may be present here from manufacturing. Remove these prior to mounting.

Industriekomponente	47	mm
A₂	15	mm
B	58.2 mm +0.5
E₁	38	mm
E₃	26	mm
E₉	6,70	mm
H₁	19,90	mm
Dimension H₂ ohne Abdeckstreifen	16,20	mm
K₂	9,60	mm
K₄	3,20	mm
N₂	4,40	mm
S₁	4,30	mm
ØS₅	4,50	mm
Drehmoment	60	mm

A₁	23,50	mm
A₃	16	mm
B₁	39,20	mm
E₂	30	mm
E₈	24,55	mm
H	24	mm
Dimension H₂ mit Abdeckstreifen	16,30	mm
K₁	8	mm
K₃	3,20	mm
N₁	5,20	mm
N₆	10.3 mm ±0.5
S₂	M5
S₉	M2.5x3.5
V₁	5	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	500	m/s²
Maschinenschutz	0,20	kg
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C

v_max	10	m/s
Maschinenschutz (Without friction of seal)	0,002 ... 0,003
Baugröße	15
