1)

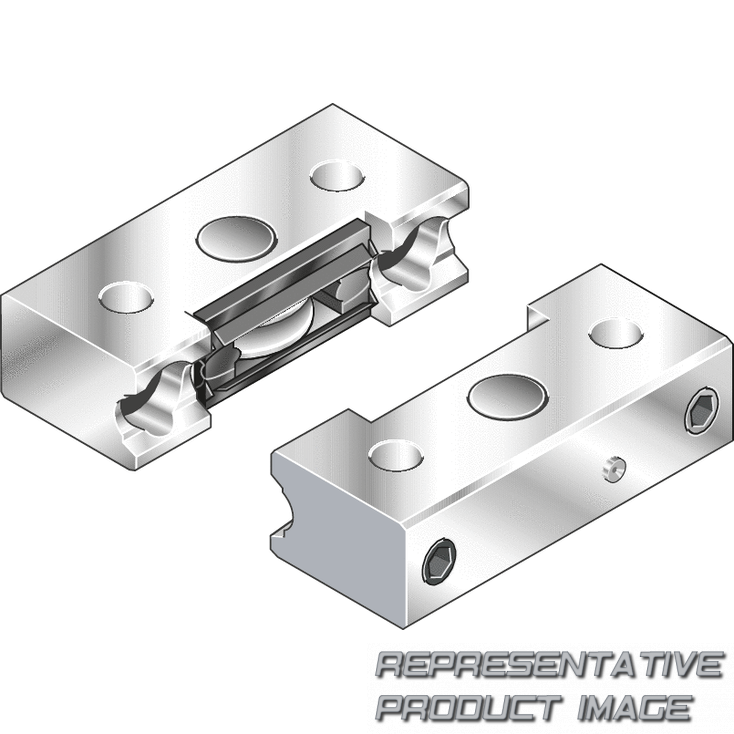

Funnel-type lube nipple ø 3 mm

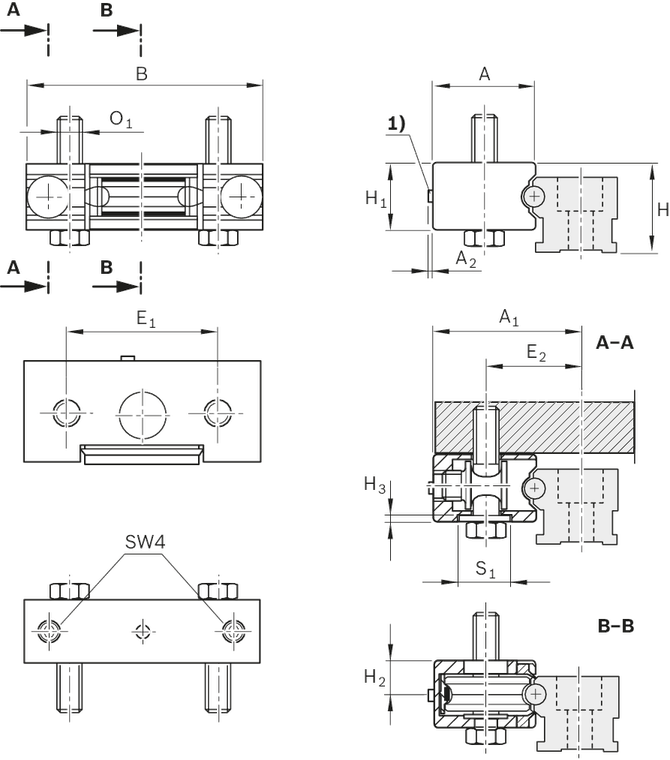

| Industriekomponente | 44,50 | mm | |
| A2 | 2 | mm | |
| E1 | 66 | mm | |
| H | 40 | mm | |
| H2 | 14,90 | mm | |
| O1 (Fastening screws are not included. Screws according to ISO 4014 8.8 require a washer according to ISO 7089. ) | M10 |
| A1 | 65 | mm | |
| B | 104 | ||
| E2 | 42 | mm | |
| H1 | 29,50 | mm | |
| H3 | 2,50 | mm | |
| S1 | 22 | mm |
| Fy max | 2.500 | N | |
| Fz max | 1.500 | N | |
| Mx max | 0,75· a | ||
| My max | 0,75· b | ||
| Mz max | 1,2 · b | ||
| vmax (For average load.) | 10 | m/s | |
| Temperaturstabilität | -20 °C ... +80 °C |
| F0y max | 2.500 | N | |
| F0z max | 2.500 | N | |
| M0x max | 1,2 · a | ||
| M0y max | 1,2 · b | ||
| M0z max | 1,2 · b | ||
| amax | 50 | m/s² | |
| Gewicht | 0,34 | kg |
