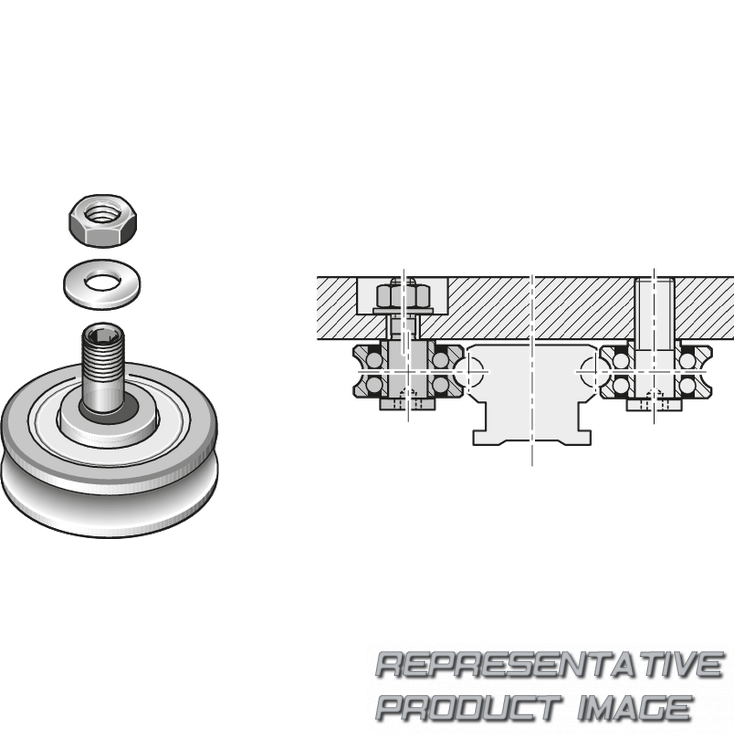

1)
Sizes 20, 25, 32
2)
Sizes 52, 52-h, 52-sh
| D1 g6 | 20 | mm | |
| D3 | 58 | mm | |
| D5 | M10 | ||
| D7 | 30 | mm | |
| Toleranz für E3 | ± 0.2 | ||
| H1 | 19 | mm | |
| H3 | 11 | mm | |
| H5 | 50,30 | mm | |
| H7 | 2 | mm | |
| S1 | 10 | mm | |
| SW2 | 4 | mm |
| D2 | 42 | mm | |
| D4 g6 | 10 | mm | |
| D6 | 19 | mm | |
| E3 (Recommended hole spacing when using the following cam roller guide rails: standard R1921, with slot R1922, flat R1924 ) | 90 | mm | |
| e | 0,90 | ||
| H2 | 21 | mm | |
| H4 | 44,30 | mm | |
| H6 | 8,40 | mm | |
| H8 | 11,80 | mm | |
| SW1 | 16 | mm | |
| SW3 | 6 | mm |
| Fy max | 2.600 | N |
| Fz max | 800 | N |
