R186322360 Bosch Rexroth

REXROTH R186322360 roller runner block resist cr

Name: R186322360 REXROTH
Brand: REXROTH
SKU: 113716-de-eur
Price: 12659.39 EUR
Availability: InStock

RWA-100-FLS-C2-H-2

12.659,39 €

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

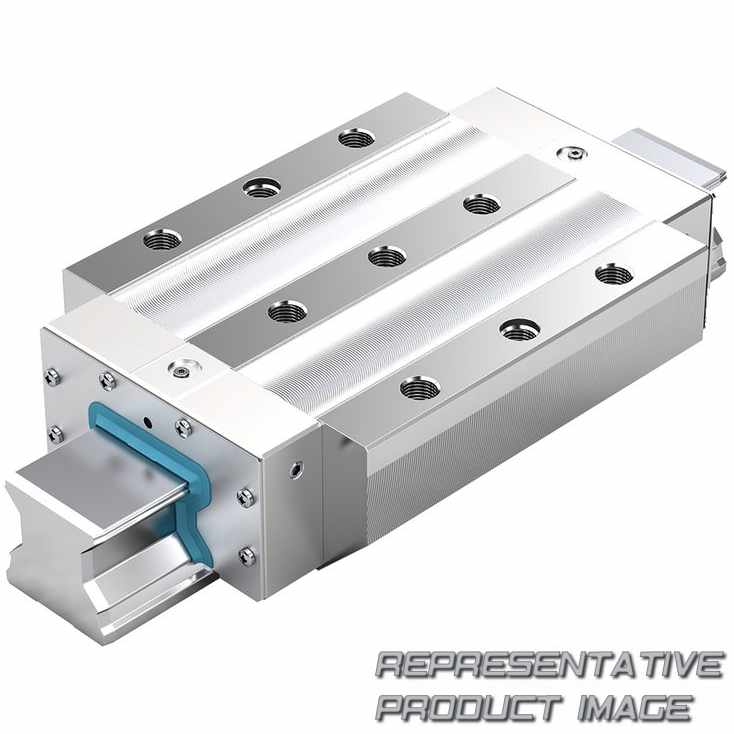

Heavy-duty roller runner block for heavy machine construction with extremely high load capacity
Top rigidity in all load directions
Improved rigidity under lift-off and side loading conditions due to three additional mounting screw holes at the center of the roller runner block
High torque capacity
Limitless interchangeability and any number of combination options thanks to uniform roller guide rails in different versions across all roller runner block variants

Roller runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated

Baureihe (R1863)	Flange, long, standard height R1863...6
Baugröße (2)	100 size
Vorspannungsklasse (2)	C2 Average preload

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (60)	SS single lipped seal, stripping

Dimensions
Technical data

^a) For O-ring Ø 15 • 2.5 (mm)
For lube port from above:
- size 100: Open lube port (see section entitled "Lubrication").
- size 125: Remove screw plug.
^b) Lube nipple, thread M8x1:
Connection possible on all sides.
All lube ports of size 125 in metal.
^c) Side lube ports on two sides, only in end caps with size 100.

Industriekomponente	250	mm
A₂	100	mm
B	380,50
B₂	385,50	mm
B₄	-
E₂	230	mm
E_8.2	130	mm
E₉	9	mm
E_9.3	70	mm
H₁	105	mm
K₁	46	mm
N₁	30	mm
N₅	17,50	mm
N₇	-
S₂	M20
Drehmoment (Dimension T = Division of the Roller Guide Rail)	105	mm

A₁	125	mm
A₃	75	mm
B₁	288	mm
B₃	393,50	mm
E₁	200	mm
E₈	64	mm
E_8.3	162,60	mm
E_9.2	29,40	mm
H	120	mm
Dimension H₂ mit Abdeckstreifen	87,30	mm
K₂	51,90	mm
N₂	22	mm
N₆	55 mm ±0.5
ØS₁	17,5
ØS₅	26	mm
V₁	20	mm

a_max (Prerequisite: There must be preload, even during operation under load.)	150	m/s²
Maschinenschutz	42	kg
Maschinenschutz (Without friction of seal)	0,0004 ... 0,001
Baugröße	100

v_max	2	m/s
F_R (Guideline value for frictional drags of the complete, sealed and lubricated roller runner blocks. The friction is approx. 50% higher immediately after lubrication. )	400	N
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. )	-10 °C ... +80 °C
