REXROTH R183536261 ROLLENSCHIENE KOHLENSTOFFSTAHL

Name: R183536261 REXROTH
Brand: REXROTH
SKU: 432868-de-eur
Price: 8183.56 EUR
Availability: SoldOut

RSA-125-SNS-P-MA-SC

8.183,56 € /m ~~10.204,48 €~~ /m -19%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Baureihe (R1835)	SNS with cover strip made of steel R1835...6
Baugröße (36)	125 size

Genauigkeitsklasse (2)	P Precision Accuracy Level
Abschnitte (61)	One-piece

Roller guide rail with cover strip and front thread holes.
Retaining with screws and washers (included).

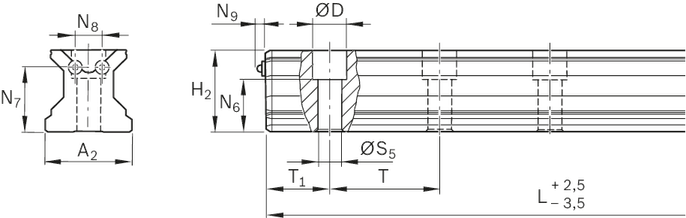

D	49	mm
N₆	74.5 mm ±0.5
N₈	38	mm
ØS₅	33	mm
T_{1 min} (with a shortfall of T_{1 min} Front thread not possible. Secure the cover strip! Observe the mounting instructions! )	40	mm
n_B	22

Dimension H₂ mit Abdeckstreifen (with cover strip 0.3 mm)	115,30	mm
N₇	91	mm
N₉	4,80	mm
Drehmoment	120	mm
T_{1 s} (Preferred dimension T_1S with tolerance +1/-1.5 )	56,50	mm

Maschinenschutz	75,60	kg
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Brief peaks up to 100 °C are permitted. For even lower sub-zero temperatures, please consult us. )	-10 °C ... +80 °C
