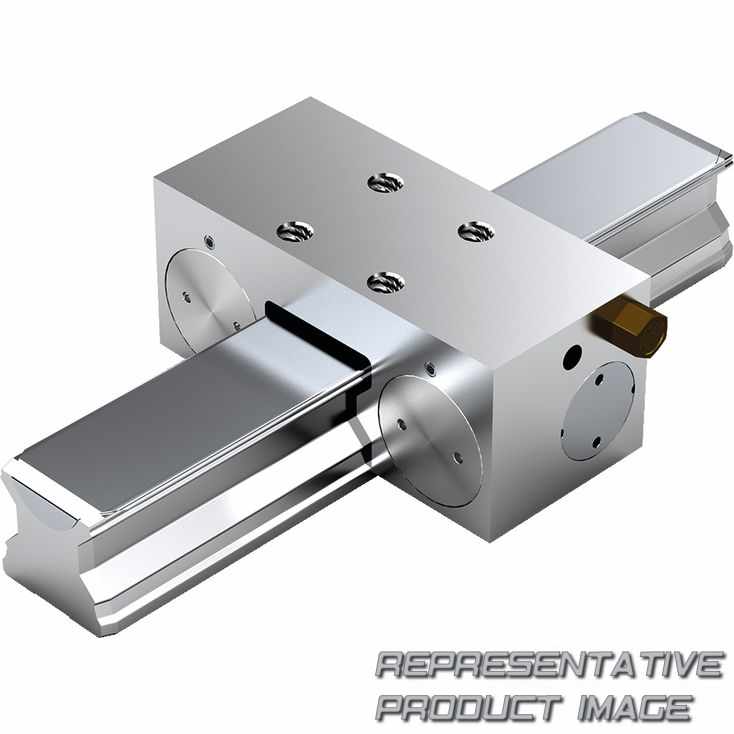

a)
Air connection*) M5 on two sides for release pressure
b)
Connection*) M5 on two sides for air filter
c)
Adjusting screw on two sides
d)
Spacer plate (accessory) for MK
e)
Air filter: connection M5 (possible on two sides)
*) Only one connection needed.
All connections sealed upon delivery.
| Industriekomponente | 75 | mm | |
| E1 | 20 | mm | |
| E3 | 5 | mm | |
| F2 | 17,50 | mm | |
| F4 | 30 | mm | |
| H1 (for roller runner block .H. (...high...) Spacer plate necessary.) | 32,50 | mm | |
| S2 | M6 |
| B | 35 | ||
| E2 | 20 | mm | |
| F1 | 6,50 | mm | |
| F3 | 6,50 | mm | |
| H | 36 | mm | |
| N3 | 8 | mm | |
| Industrielle Stärke | 5,50 | mm |
| Federenergie-Haltekraft mit Standard-Luftanschluss (Holding force at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68). ) | 1.200 | N | |
| Maximaler pneumatischer Betriebsdruck | 8 | bar | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
| Luftverbrauch (Normalliter) Standard-Luftanschluss | 0,02 | dm³/stroke | |
| Masse | 0,45 | kg | |
| Baugröße | 25 |
