R162269310 Bosch Rexroth

REXROTH R162269310 KUGELWAGEN KOHLENSTOFFSTAHL

Name: R162269310 REXROTH
Brand: REXROTH
SKU: 111946-de-eur
Price: 796.9 EUR
Availability: InStock

KWC-065-SNS-C0-H-2

796,90 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Finden Sie Ihre passende Kombination! Klicken Sie hier, um passende Führungsleisten für diesen Laufwagen zu entdecken

Technische Daten

Area of application: For restricted space in transverse direction
Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
High torque capacity
The same high load ratings in all four main directions of loading
Low noise level and outstanding travel behavior

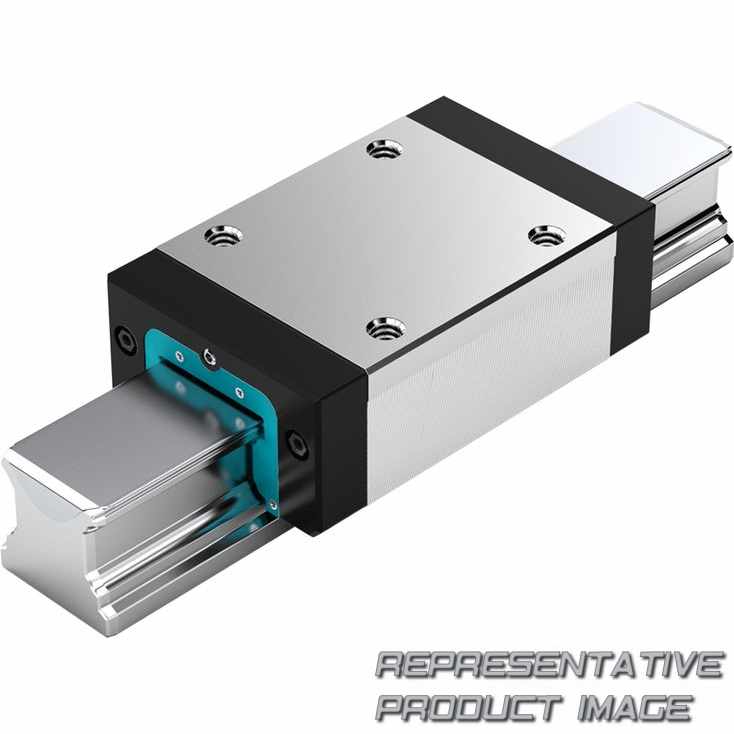

Ball runner block CS, made of Carbon steel

Baureihe (R1622)	Slimline, normal, standard height R1622...1
Baugröße (6)	65 size
Vorspannungsklasse (9)	C0 Without preload (clearance)

Genauigkeitsklasse (3)	H Hight Accuracy Level
Dichtungen (10)	SS Standard seal without ball chain

Dimensions
Technical data

^a) Lube nipple, size 55:
Hydraulic-type lube nipple DIN 71412-B M6x8, B₂ = 16 mm
Lube nipple, size 65:
Hydraulic-type lube nipple DIN 71412-B M8x1x8, B₂ = 16 mm
When using different lube nipples, pay attention to the screw-in depth of 8 mm!
The lube nipple is included in the scope of delivery (not installed).
Connection is possible on end-face.
^b) Size 65

Industriekomponente	126	mm
A₂	63	mm
B	188 mm +0.5
E₁	76	mm
E₈	76	mm
E₉	11	mm
H	90	mm
Dimension H₂ mit Abdeckstreifen	60,15	mm
K₃	16	mm
N₆	38.5 mm ±0.5
ØS₅	18	mm
Drehmoment	150	mm

A₁	63	mm
A₃	31,50	mm
B₁	139,60	mm
E₂	70	mm
E_8.1	100	mm
E_9.1	53,50	mm
H₁	76	mm
Dimension H₂ ohne Abdeckstreifen	59,85	mm
N₃	21	mm
S₂	M16
S₉	M4x7
V₁	15	mm

a_max (If F_comb > 2.8 • F_pr : a_max = 50 m/s²)	250	m/s²
Maschinenschutz	6,90	kg
Betriebsbedingungen	Operating conditions
Zulässige Umgebungstemperatur (min ... max) (Up to 100 °C permissible for short periods. For operation at negative temperatures, please consult us. )	-10 °C ... +80 °C
