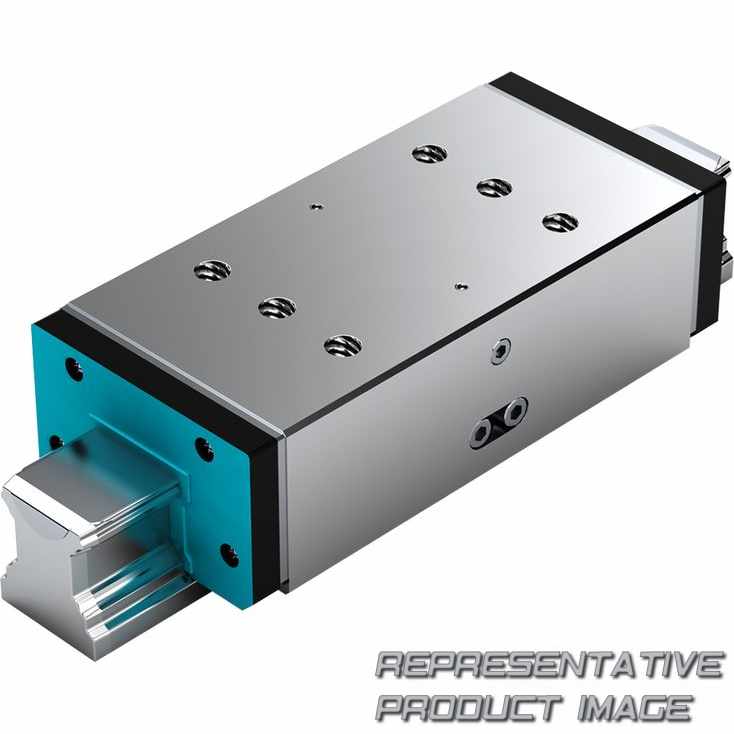

a)
Hydraulic connection*) G1 on two sides
b)
In addition, both middle mounting holes must be used!
*) Only one connection needed.
All connections sealed upon delivery.
| Industriekomponente | 126 | mm | |
| B3max | 264 | mm | |
| E2 | 120 | mm | |
| G1 | 1/4" | ||
| H1 | 76 | mm | |
| S2 | M16 |
| B1 | 227 | mm | |
| E1 | 76 | mm | |
| Kraft | 20 | mm | |
| H | 90 | mm | |
| N3 | 21 | mm |
| Haltekraft (The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).,At 100 bar) | 22.700 | N | |
| Maximaler hydraulischer Betriebsdruck | 150 | bar | |
| Betriebsbedingungen | Operating conditions | ||
| Zulässige Umgebungstemperatur (min ... max) | 0 °C ... +70 °C |
| Schluckvolumen (Per clamping) | 3,80 | cm³ | |
| Masse | 14,40 | kg | |
| Baugröße | 65 |
