| Statische Tragzahl C0 | 40000 N | ||
| Baureihe | Standard series | ||
| Fußnote dynamische Tragfähigkeit C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Statische Tragzahl C0 | 40000 N | ||
| Masse m | 0.62 g | ||

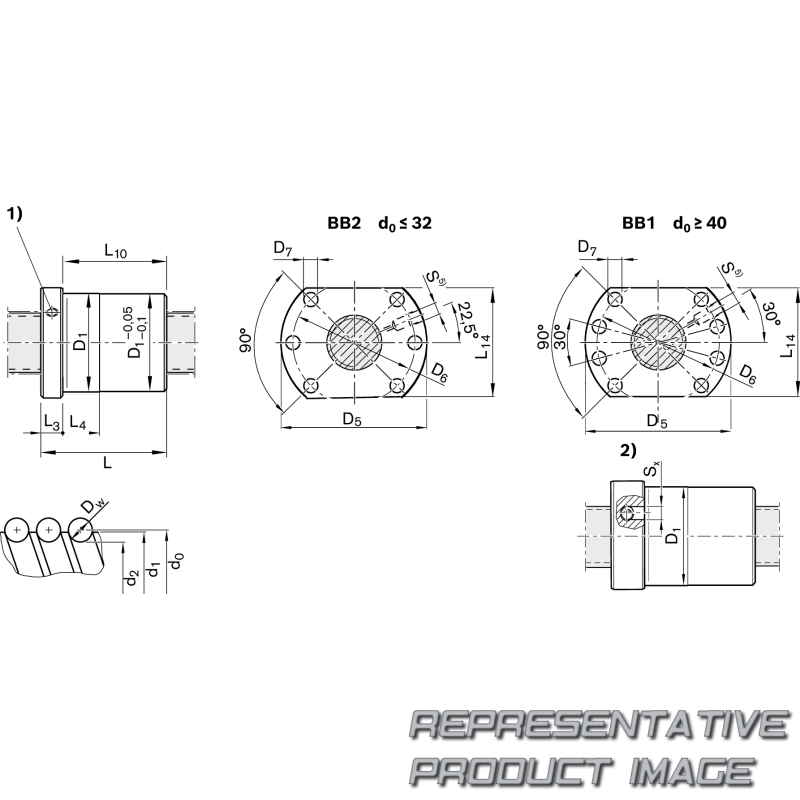

| Lochmuster | BB2 | ||
| Lagertemperature min | |||
| Minimale Betriebstemperatur | |||
| Ausführung | Ball screw assembly | ||

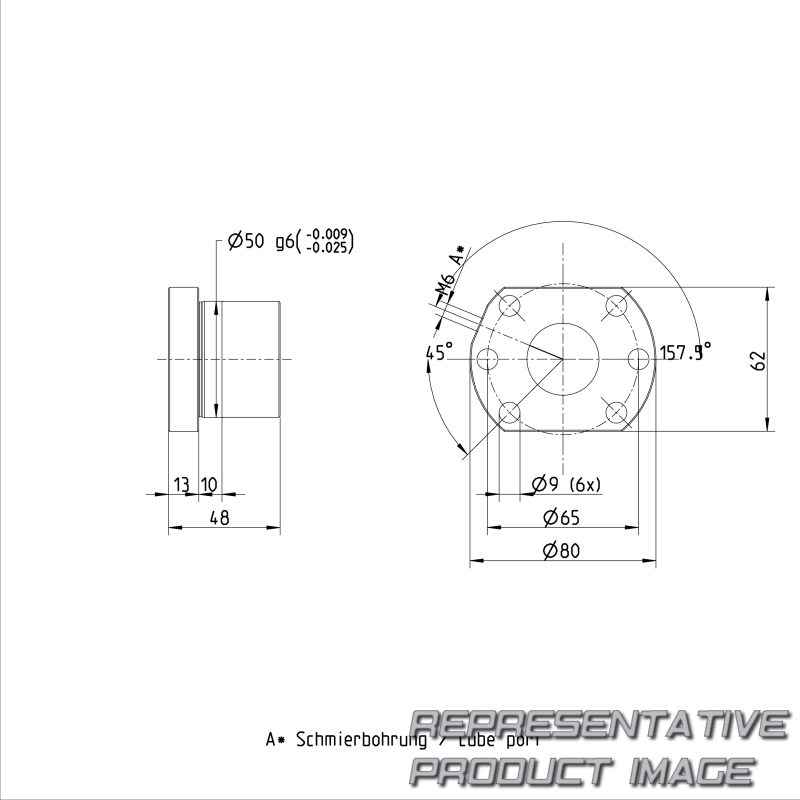

| Abmessung D1 g6 | 50 mm | ||
| Abmessung d2 | 28.4 mm | ||
| Abmessung D6 | 65 mm | ||
| Dimension L10 | 35 mm | ||
| Abmessung L3 | 13 mm | ||
| Dimension Sx | 5 mm | ||
| Maximal zulässige Lineargeschwindigkeit vmax (m/min) | 23 m/min | ||
| Betriebstemperatur (min. … max.) | -10 °C ... +80 °C | ||
| Hinweis zulässige Betriebstemperatur (min. … max.) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Durchmesser d0 | 32 mm |
| Nennweite | 32 x 5L x 3,5 - 4 mm | ||
| Dynamische Tragzahl C | 25900 N | ||
| Mutternart | FEM-E-B single nut with flange | ||
| Fußnote statische Tragfähigkeit C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Fußnote zulässige Betriebstemperatur (min...max) | Permissible operating temperatures Ball screw assemblies permit operation at continuous temperatures of up to 80 °C with temporary peaks of 100 °C, measurements taken on the outer shell of the nut in each case. | ||
| Lagertemperature max | |||
| Maximale Betriebstemperatur | |||
| Kategorie | B | ||
| Abmessung d1 | 31 mm | ||
| Abmessung L | 48 | ||
| Dimension D5 | 80 mm | ||
| Abmessung D7 | 9 mm | ||
| Dimension L14 | 62 mm | ||
| Abmessung L4 | 10 mm | ||
| Hinweis dynamische Tragzahl C | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). | ||
| Hinweis maximal zulässige Geschwindigkeit vmax | See "Characteristic speed d0 • n" (section Technical notes) and "Critical speed ncr" (section Calculation and examples) | ||
| Lagertemperatur (min. … max.) | -15 °C ... +80 °C | ||
| Hinweis statische Tragzahl C0 | The load capacities are valid for tolerance grade T3 and T5 only. For other tolerance grades, please take into account the correction factor fac (see General Technical Notes and Information "Technical Data", Technical Notes). |
