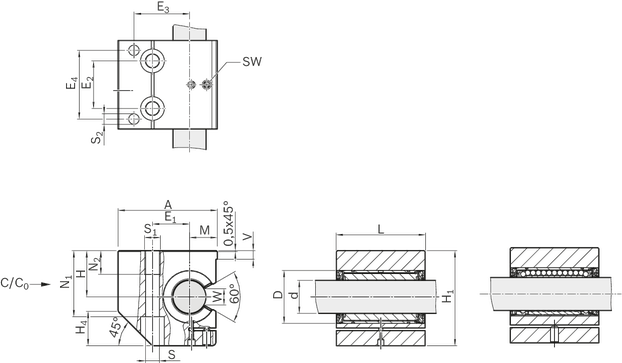

| D | 32 | mm | |
| E1 | 22 mm ±0.15 | ||
| E3 | 33 | mm | |
| H | 30 | mm | |
| H1 | 60 | mm | |
| Linie | 54 | mm | |
| N1 | 42 | mm | |
| S (Cylinder bolts ISO 4762-8.8) | 8,40 | ||
| S2 (Pin hole centering.) | 6 | ||
| Ventil | 5 | mm |
| Industriekomponente | 60 | mm | |
| E2 | 30 mm ±0.15 | ||
| E4 | 42 | mm | |
| Toleranz für H (Clamped (fastened) in relation to Ø d.) | + 5 - 19 |
||
| H4 | 22 | mm | |
| Maschinenschutz (Clamped (fastened) in relation to Ø d.) | 17 mm ±0.01 | ||
| N2 | 15 | mm | |
| S1 | M10 | ||
| Schalter | 2,50 | ||
| W (Minimum size in relation to Ø d.) | 10 | mm |
| amax | 100 | m/s² | |
| Maschinenschutz | 0,45 | kg | |
| Losbrechkraft | 16 | N | |
| Betriebsbedingungen | Operating conditions |
| vmax | 2,50 | m/s | |
| FR (Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. The frictional drags depend on speed and lubrication. ) | 6 | N | |
| Radialspiel der Welle h6 (Clamped (fastened).) | + 36 + 4 |
||
| Zulässige Umgebungstemperatur (min ... max) | -10 °C ... +80 °C |
