| Gewicht | 2.26403 lb | ||
| weight note 3) | 1,100 g | ||
| current consumption (no load) | 20 ma or less | ||
| output note 2)specifications | current output 4 to 20 malinearity: ?5% f.s. or less; allowable load resistance: 300 or less with 12 vdc, 600 or less with 24 vdc | ||
| repeatability note 1) | ?3% f.s. or less | ||
| operating fluid temperature | 0 to 50c | ||
| operating pressure range | 0 to 1 mpa | ||
| detection type | karman vortex | ||

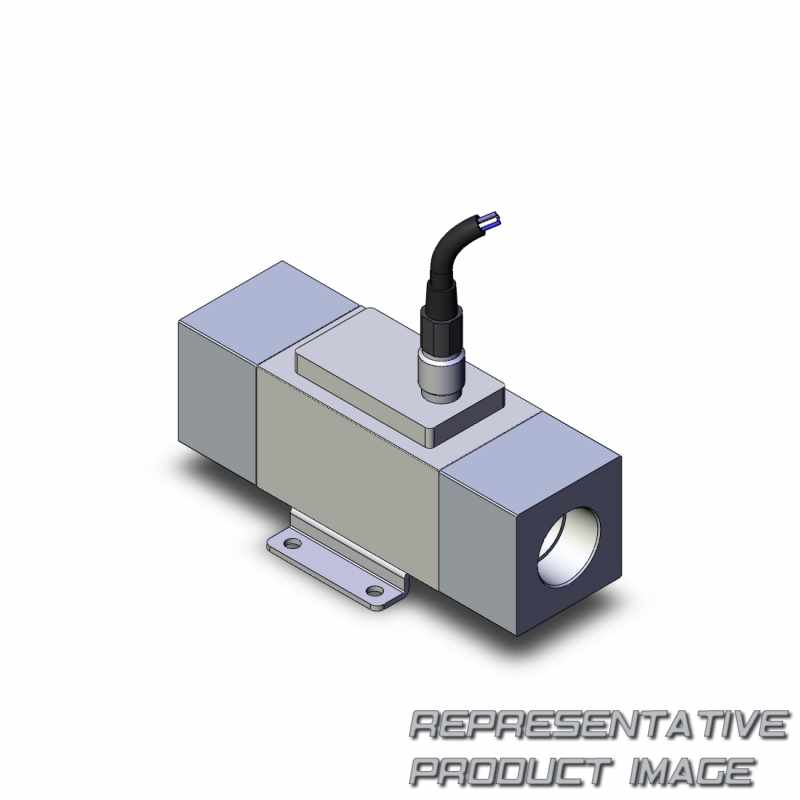

| Baureihe | pf2w511 |
| port size (rc, npt, g) | 3/4, 1 | ||
| resistance | 1000 vp-p, pulse width 1 ?s, rise time 1 ns | ||
| Versorgungsspannung | 12 to 24 vdc (ripple ?10% or less) | ||
| temperature characteristics | ?2% f.s. or less (15 to 35c based on 25c), ?3% f.s. or less (0 to 50c, based on 25c) | ||
| linearity note 1) | ?5% f.s. or less | ||
| withstand pressure | 1.5 mpa | ||
| rated flow range | 10 to 100 l/min | ||
| measured fluid | water |
