| Gewicht | 1.69020 lb | ||
| weight note 3) | 660 g | ||
| current consumption (no load) | 20 ma or less | ||
| output note 2)specifications | analog output | ||
| repeatability note 1) | ?2% f.s. or less | ||
| operating fluid temperature | 0 to 90c (with no cavitation) | ||
| operating pressure range | 0 to 1 mpa | ||
| detection type | karman vortex | ||

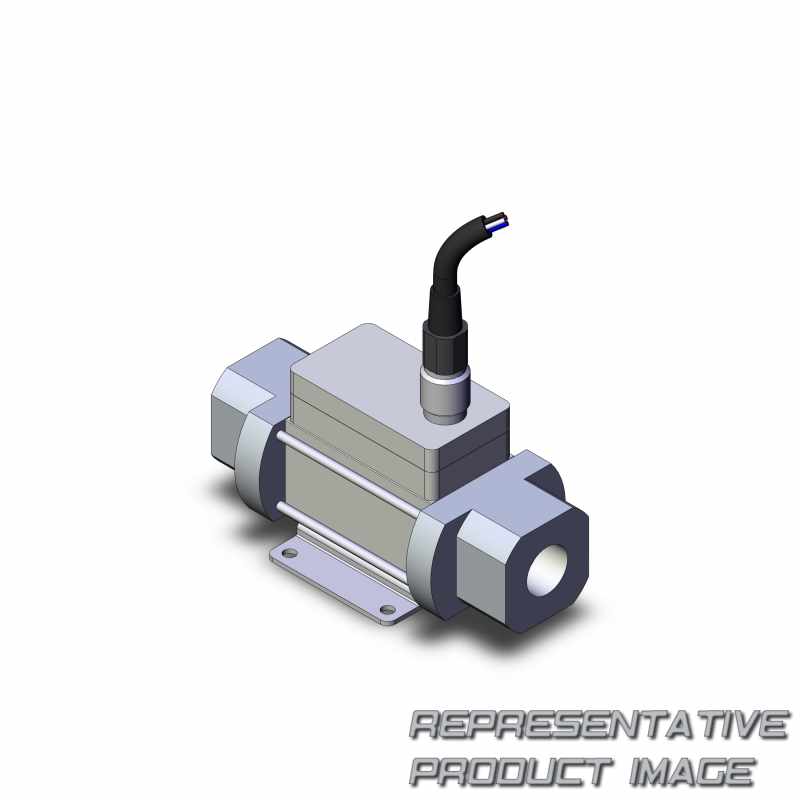

| Baureihe | pf2w504t |
| port size (rc, npt, g) | 3/8 | ||
| resistance | noise resistance | ||
| Versorgungsspannung | 12 to 24 vdc (ripple ?10% or less) | ||
| temperature characteristics | ?2% f.s. or less (15 to 35c, based on 25c), ?3% f.s. or less (0 to 50c, based on 25c) | ||
| linearity note 1) | ?5% f.s. or less | ||
| withstand pressure | 1.5 mpa | ||
| rated flow range | 0.5 to 4 l/min | ||
| measured fluid | water, mixture of water (50%) and ethylene glycol (50%) |
