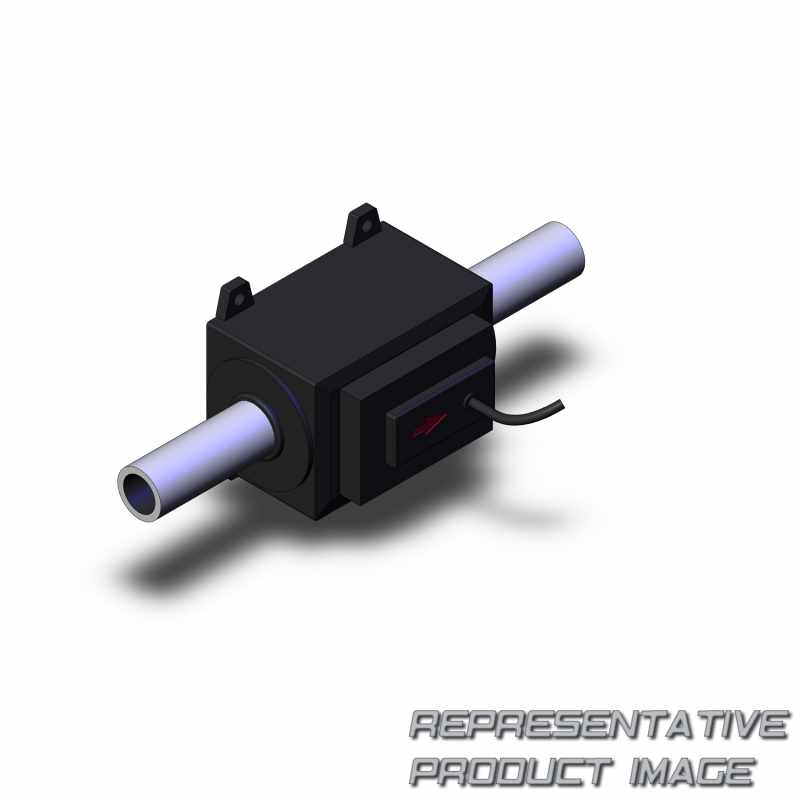

SMC PF2D540-19-2

Name: PF2D540-19-2 SMC
Brand: SMC
SKU: 827042-de-eur
Price: 892.7 EUR
Availability: InStock

892,70 € ~~1.170,54 €~~ -23%

verfügbar mit 7 bis 15 Tagen Lieferzeit nach United States

Technische Daten

Versorgungsspannung	12 to 24 vdc (ripple ?10% or less)

Gewicht	225Kg

Gewicht		.87585 lb
Anschlussgröße		3/4 inch tube
Stromaufnahme		20 ma or less (without load)
output specifications		current output note 6) 4 to 20 malinearity: ?2% f.s.or less, allowable load resistance: 300 or less with 12 vdc, 600 or less with 24 vdc
repeatability		?1% f.s. or less (at 25c water)
operating fluid temperature		0 to 90c
operating pressure range note 2)		0 to 0.6 mpa
detection style		karman vortex
Baureihe		pf2d540

wetted material		body: new pfa, sensor: new pfa, tube: super pfa
environmental resistance		1000 vp-p, pulse width: 1 ?s, rise time: 1 ns
Versorgungsspannung		12 to 24 vdc (ripple ?10% or less)
temperature characteristics		?5% f.s. or less (0 to 50c, based on 25c)
linearity note 4)		?2.5% f.s. or less (at 25c water)
proof pressure note 3)		0.9 mpa
rated flow range		4 to 40 l/min
measured fluid		liquid not to corrode nor erode deionized water and/or teflon?. viscosity: 3mpa?s (3cp) or less
