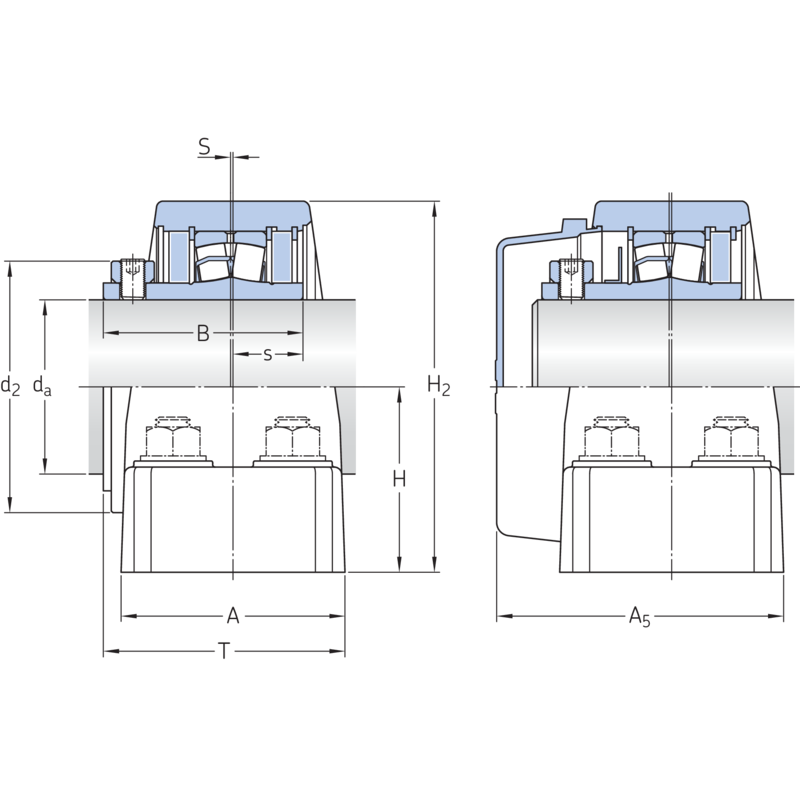

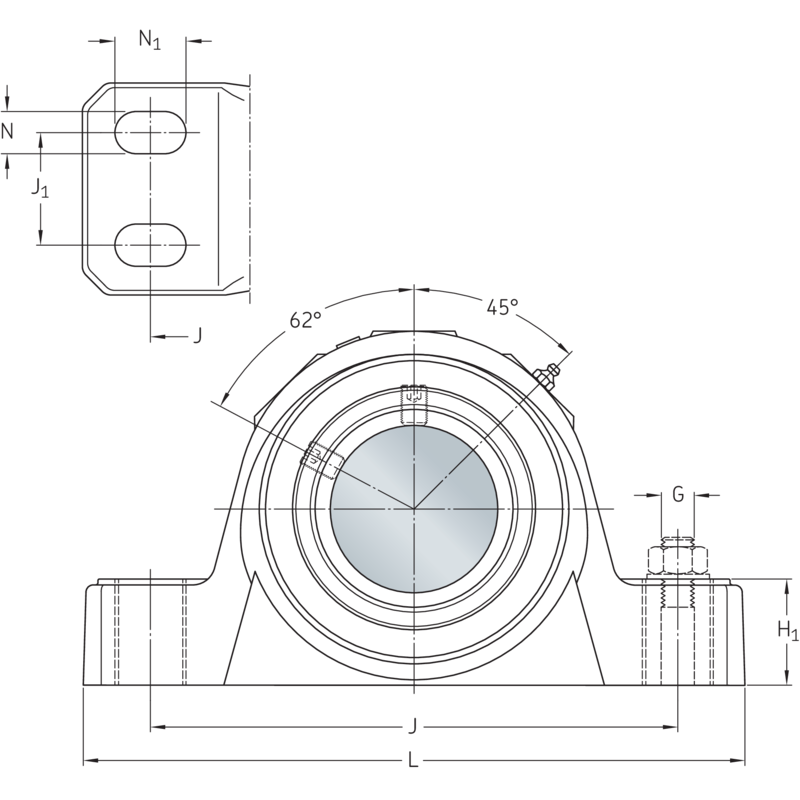

| Shaft diameter | d | 76,20 | mm |
| Housing foot width | A | 101,60 | mm |
| Inner ring width | B | 92,08 | mm |
| Housing foot height | H1 | 47,63 | mm |
| Distance between attachment bolts, min. | J | min.257.175 | |
| Distance of attachment bolts | J | 244,48 | mm |
| Housing length | L | 304,80 | mm |
| Length of attachment bolt hole | N1 | 31,75 | mm |
| Centreline of "fixed" bearing | S | 0,79 | mm |
| Collar outer diameter | d2 | 111,13 | mm |
| Width including end cover | A5 | 127,79 | mm |
| Height base to center | H | 79,38 | mm |
| Housing height | H2 | 160,34 | mm |
| Distance between attachment bolts, max. | J | max.231.775 | |
| Axial distance bolt to bolt | J1 | 53,98 | mm |
| Width foot slot width | N | 19,05 | mm |
| Centreline unit to side face of inner ring | s | 31,75 | mm |
| Total width | T | 111,92 | mm |
