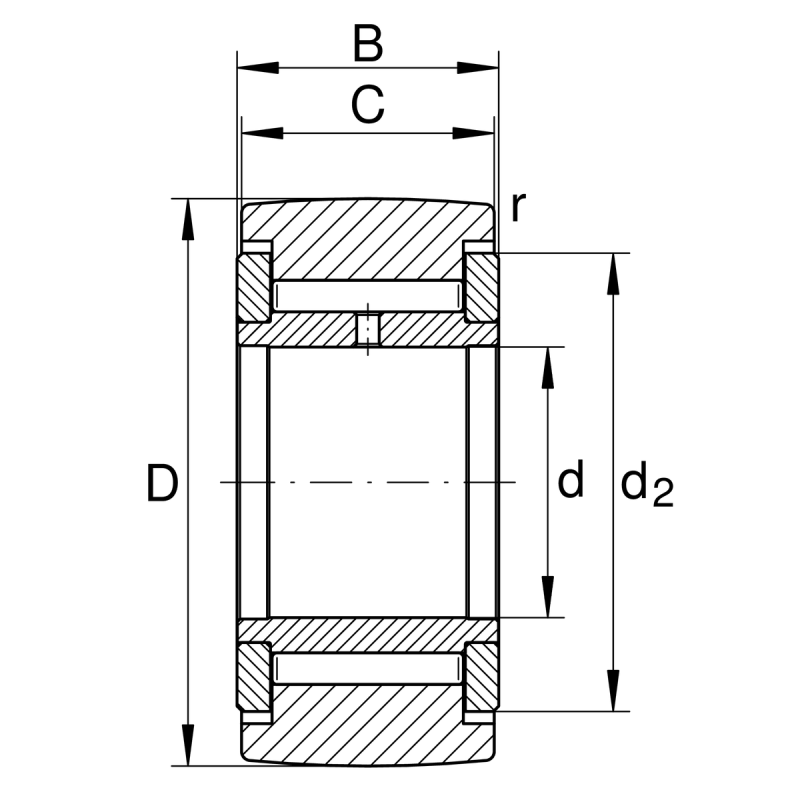

| Bore diameter | d | 15 | mm |
| Width of the bearing | B | 19 | mm |
| Basic static load rating, radial | C0r | 23,400 | |
| Speed on permanent grease lubrication | nD G | 1,600 | |
| Permissible dynamic load outer ring, radial | Fr per | 21,500 |
| Außen-Ø | D | 35 | mm |
| Basic dynamic load rating, radial | Cr | 12,700 | |
| Fatigue load limit, radial | Cur | 3,250 | |
| Permissible static load, radial | F0r per | 23,400 |
| Width, outer ring | C | 18 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Outside diameter of thrust washer | d2 | 27,60 | mm |
| Radius of outer ring outside profile | R | 500 | mm |
| Hersteller | Teilenummer |
|---|---|
| KOYO | CYM15RM |
| McGill Manufacturing | MCYR-15 |
| NTN | NATV15 (NTN) |
| NSK | FYCR-15R |
| NADELLA | FG 15 35 |
| Jalman Precision | NART15VR |
| SKF | NATV15 (SKF) |
| Alfatec | HTAV15 |
| IKO | NART15-VR (IKO) |
