| inner diameter (mm) | 12 | ||
| outer ring shape | cylindrical | ||
| Width (mm) | 16 | ||

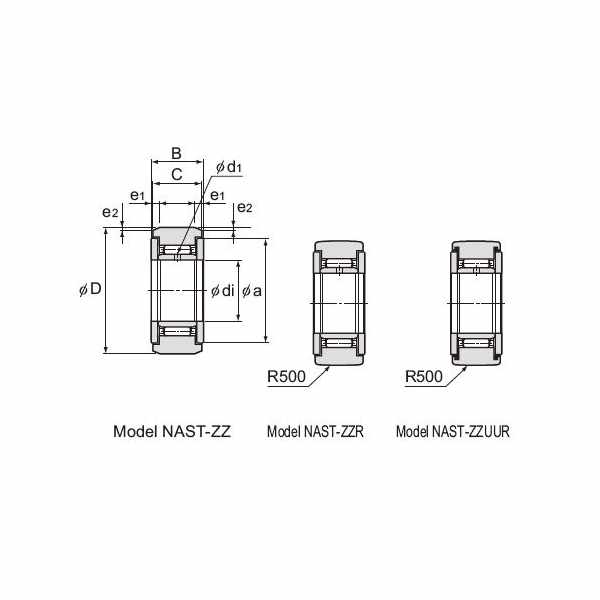

| outer diameterd - mm | 32 | ||
| c - mm | 15,80 | ||
| e1 - mm | 2,50 | ||
| oil holed1 - mm | 2 | ||
| basic load rating - static c0 - kn | 10,90 | ||
| track load capacity - spherical outer ring - kn | 2,74 | ||
| mass - g | 75 |
| outer diameter (mm) | 32 | ||
| dust protection seal | no seal | ||
| inner diameterdi - mm | 12 | ||
| b - mm | 16 | ||
| a - mm | 25,50 | ||
| e2 - mm | 0,80 | ||
| basic load rating - dynamic c - kn | 10,40 | ||
| track load capacity - cylindrical outer ring - kn | 7,35 | ||
| rotational speed limit1 - min-1 | 13.000 |
