| Gewicht | .07700 lb | ||
| table mounting section - l | 18,50 | ||
| table mounting section - j | 11 | ||
| body mounting section - p *1) | m4 x 12 | ||
| body mounting section - g | 4 | ||
| body mounting section - e | 22 | ||
| body mounting section - c | 1/4 | ||
| body mounting section - a | 9,50 | ||

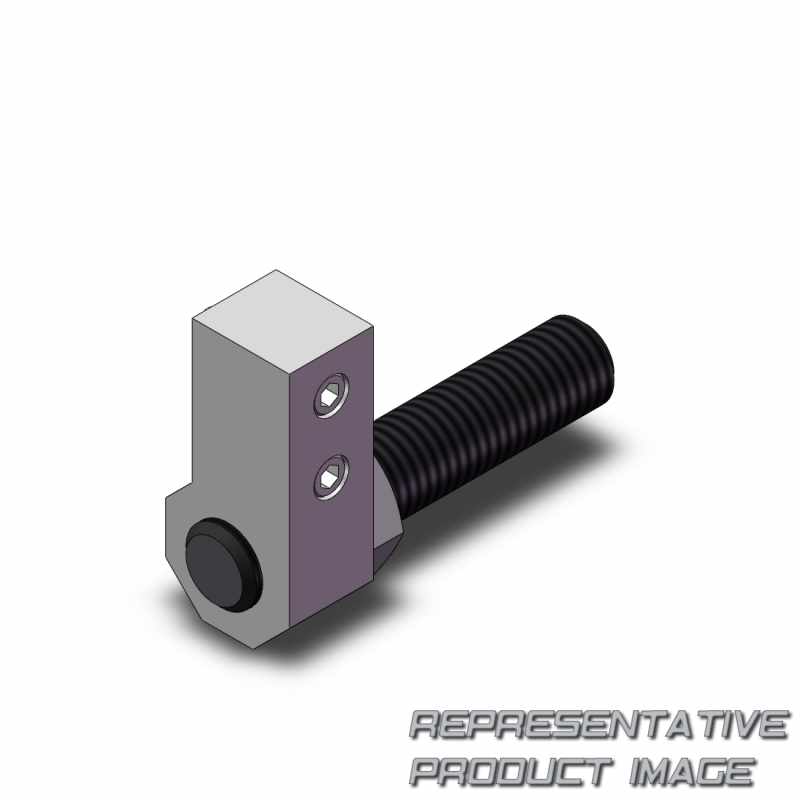

| Baureihe | mxq-cs12 (l) |
| table mounting section - q ?1) | m4 x 12 | ||
| table mounting section - k | 13 | ||
| table mounting section - h | 20,50 | ||
| body mounting section - m | m8 x 1 | ||
| body mounting section - f | 12 | ||
| body mounting section - d | 11 | ||
| body mounting section - b | 29 | ||
| stroke adjustment range (mm) | 5 | ||
| applicable size | mxq12 (l) |
