| Gewicht | .48400 lb | ||
| table mounting section - l | 31 | ||
| table mounting section - j | 19 | ||
| body mounting section - p *1) | m8 x 18 | ||
| body mounting section - g | 12 | ||
| body mounting section - e1 | 12 | ||
| body mounting section - d | 18 | ||
| body mounting section - b | 54 | ||
| stroke adjustment range (mm) | 35 | ||
| applicable size | mxq25 (l) |
| table mounting section - q ?1) | m8 x 20 | ||
| table mounting section - k | 22 | ||
| table mounting section - h | 33 | ||
| body mounting section - m | m14 x 1.5 | ||
| body mounting section - f | 19 | ||
| body mounting section - e | 67,30 | ||
| body mounting section - c | 22 | ||
| body mounting section - a | 16 | ||

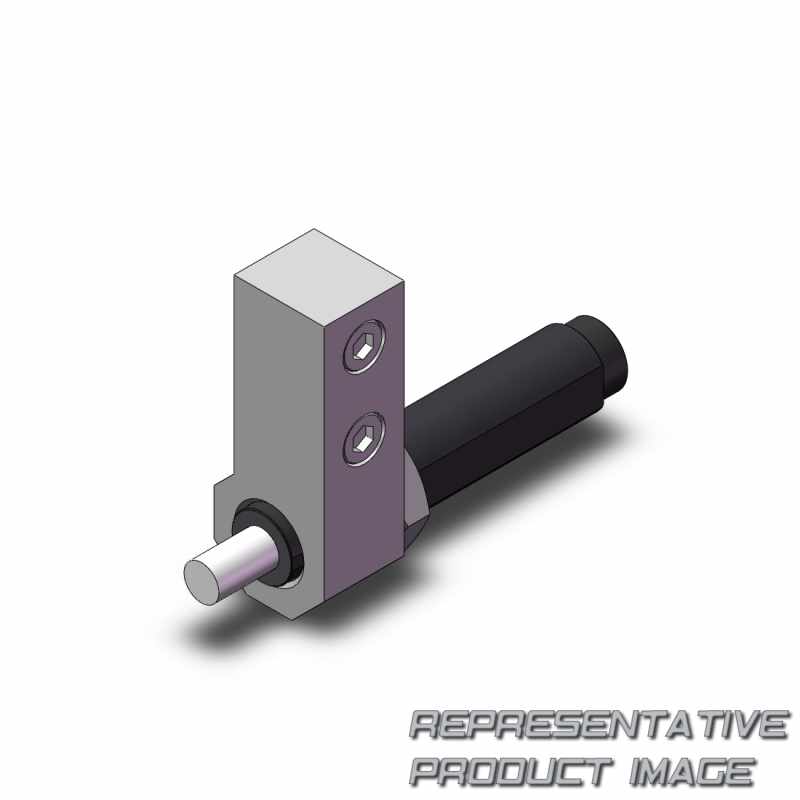

| Baureihe | mxq-bs25 (l) |
