| Gewicht | .16940 lb | ||
| table mounting section - l | 21 | ||
| table mounting section - j | 13,50 | ||
| body mounting section - p *1) | m5 x 16 | ||
| body mounting section - g | 1,40 | ||
| body mounting section - e1 | 7 | ||
| body mounting section - d | 13,50 | ||
| body mounting section - b | 36 | ||
| stroke adjustment range (mm) | 22 | ||
| applicable size | mxq16 (l) |
| table mounting section - q ?1) | m5 x 16 | ||
| table mounting section - k | 16 | ||
| table mounting section - h | 23 | ||
| body mounting section - m | m10 x 1 | ||
| body mounting section - f | 1/4 | ||
| body mounting section - e | 46,70 | ||
| body mounting section - c | 17 | ||
| body mounting section - a | 11 | ||

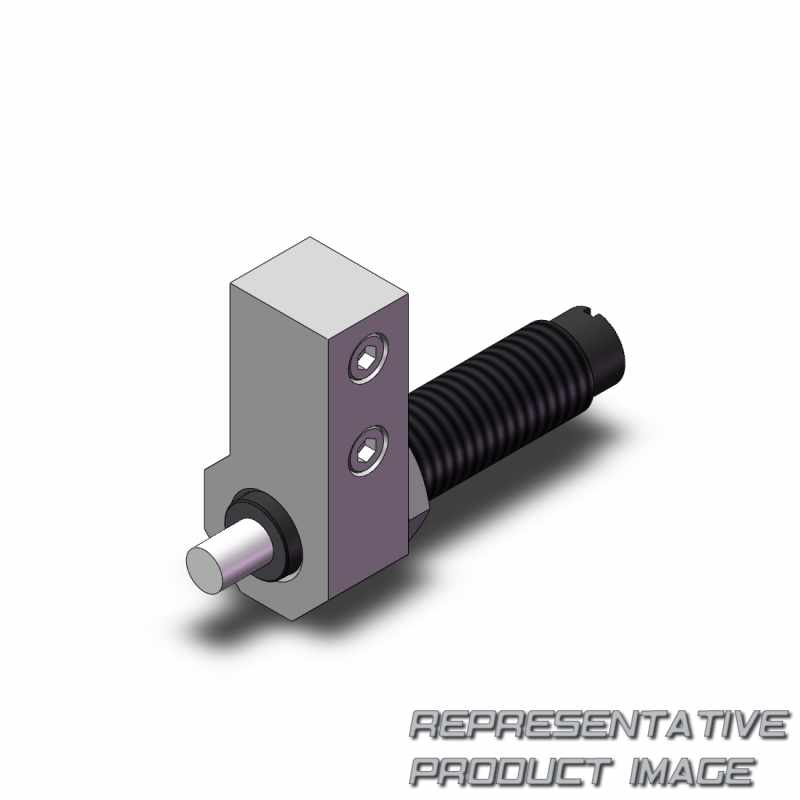

| Baureihe | mxq-bs16 (l) |
