| Gewicht | .07040 lb | ||
| table mounting section - k | 12,70 | ||
| table mounting section - h | 18,50 | ||
| body mounting section - m | m8 x 1 | ||
| body mounting section - f | 12 | ||
| body mounting section - d | 11 | ||
| body mounting section - b | 29 | ||
| stroke adjustment range (mm) | 15 | ||
| applicable size | mxq12 (l) |
| table mounting section - q ?1) | m4 x 12 | ||
| table mounting section - j | 10,50 | ||
| body mounting section - p ?1) | m4 x 12 | ||
| body mounting section - g | 4 | ||
| body mounting section - e | 33,50 | ||
| body mounting section - c | 1/4 | ||
| body mounting section - a | 9,50 | ||

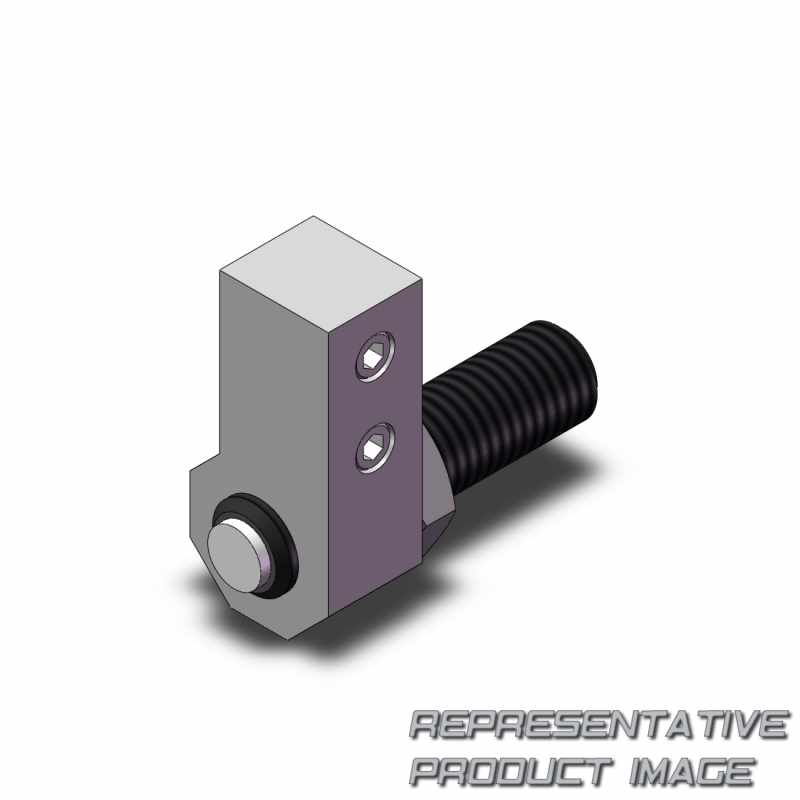

| Baureihe | mxq-as12 (l)-x11 |
