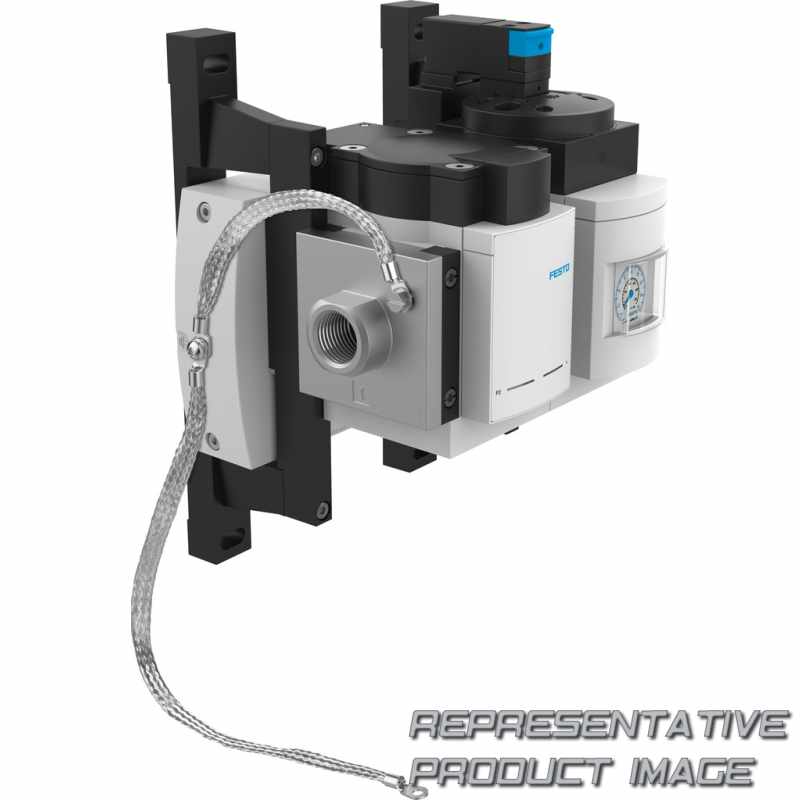

FESTO MSE
5 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO MSE – Modular standard, electric. Finden Sie das passende Produkt durch Filtern mit Electrical actuation, Electrical inputs/outputs, Electrical system expansion und Elektrischer Anschluss.
MSE Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| MSE | MSE-6- -5000- - | Modular standard, electric |
Typcode zur Katalognummer MSE,
MSE-6- -5000- -
| 001 | Series |
|---|---|
| MSE | Modular standard, electric |
| 002 | Size |
| 6 | Grid dimension 62 mm |
| 003 | Function |
| C2M | Energy efficiency module |
| D2M | Energy efficiency module |
| E2M | Energy efficiency module |
| 004 | Flow measuring range |
| 5000 | Max. 5000 l/min |
| 005 | Electrical actuation |
| FB13 | Fieldbus node for PROFIBUS DP |
| FB36 | Fieldbus node for Ethernet/IP |
| FB37 | Fieldbus node for EtherCAT® |
| FB43 | Bus node for PROFINET IO with M12 connection |
| FB44 | Bus node for PROFINET IO with RJ45 connection |
| CBUS | Internal electrical control |
| 006 | Electrical inputs/outputs |
| None | |
| D | 2 digital inputs, 2 digital outputs |
| 007 | Electrical system expansion |
| No CPX extension connection | |
| M | CPX extension connection row 1 (master) |
| S | CPX extension connection row 2 (slave) |
| 008 | Measured value display |
|---|---|
| No display | |
| A4 | Adapter for EN pressure gauge 1/4, without pressure gauge |
| A8 | Adapter for EN pressure gauge 1/8, without pressure gauge |
| AG | MS pressure gauge standard scale |
| RG | Integrated pressure gauge with red/green scale |
| VS | Cover plate |
| 009 | Alternative pressure gauge scale |
| MS pressure gauge | |
| BAR | bar |
| MPA | MPa |
| 010 | Electrical connection |
| Standard | |
| AMI | Operating voltage plug push-pull, AIDA |
| M12L4 | Operating voltage plug M12, L-coded, 4-pin |
| M12L5 | Operating voltage plug M12, L-coded, 5-pin |
| VCB | Power supply via C-bus |
| 011 | Pneumatic connection |
| AGD | Connecting plate G1/2 |
| AGE | Connecting plate G3/4 |
