| Werkstoff Membran | NBR | ||
| Werkstoff Dichtungen | NBR | ||
| Pneumatischer Anschluss 1 | G1/4 | ||
| Cable interface | Inputs: M12x1 plug connector, 5-pin | ||
| Umgebungstemperatur | 0 °C ... 50 °C | ||
| Mediumstemperatur | 0 °C ... 50 °C | ||
| Lagertemperatur | -10 °C ... 50 °C | ||
| Hinweis zum Betriebs-/Steuermedium | Lubricated operation possible (in which case lubricated operation will always be required) | ||
| CE-Zeichen (siehe Konformitätserklärung) | To EU EMC Directive | ||
| Control period/pause ratio | 1:3 | ||
| Current consumption at nominal operating voltage | Max. 1 A | ||
| Type of inputs | To IEC 61131-2 No galvanic isolation | ||
| Standard nominal flow rate | 2.700 l/min | ||
| Druckregelbereich | 0,5 bar ... 12 bar | ||
| Pressure gauge (ANALOG) or Pressure display (DIGITAL) | With pressure gauge | ||
| Controller function | Output pressure constant Via primary pressure compensation With secondary venting | ||
| Konstruktiver Aufbau | Electrically adjustable pressure regulator | ||
| Baureihe | MS |
| Werkstoff Gehäuse | Die-cast aluminium | ||
| Pneumatischer Anschluss 2 | G1/4 | ||
| Befestigungsart | In-line installation With accessories Either: | ||
| Produktgewicht | 1.280 g | ||
| Schutzart | IP65 | ||
| Lebensmitteltauglichkeit | See supplementary material information | ||
| Korrosionsbeständigkeitsklasse KBK | 2 - Moderate corrosion stress | ||
| Betriebsmedium | Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases | ||
| Zulässige Spannungsschwankungen | +/- 10 % | ||
| Stromaufnahme | Max 3.5 A at 24 V DC | ||
| Nennbetriebsspannung DC | 24 V | ||
| Control period at 25 °C | Max. 90 s | ||
| Max. Druckhysterese | 0,25 bar | ||
| Betriebsdruck | 0,8 bar ... 20 bar | ||

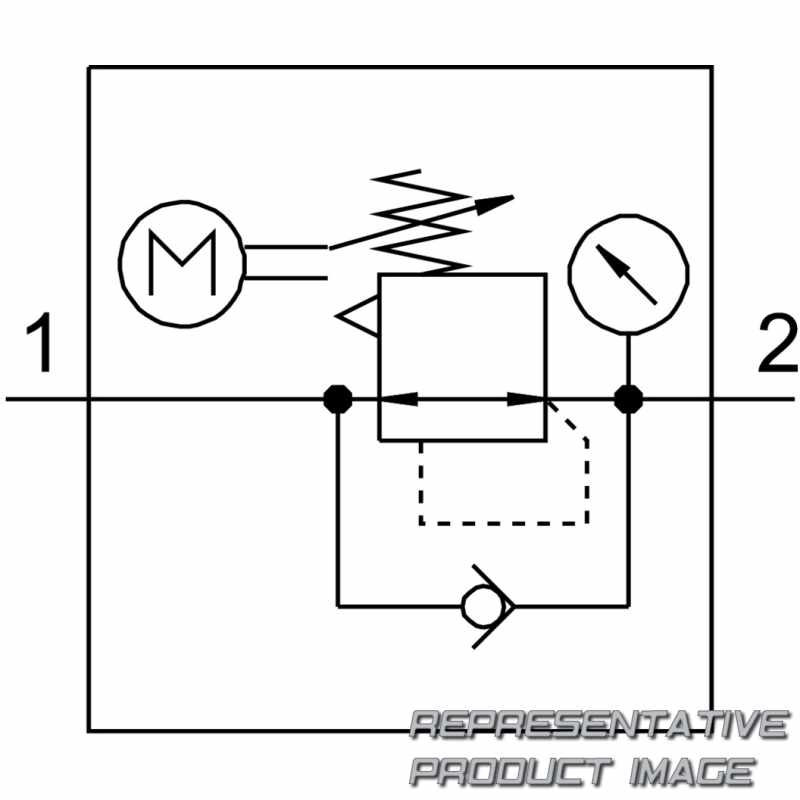

| Symbol | 00991878 | ||
| Kurzschlussfestigkeit | For all electrical connections | ||
| Einbaulage | optional Preferably vertical | ||
| Baugröße | 6 |
