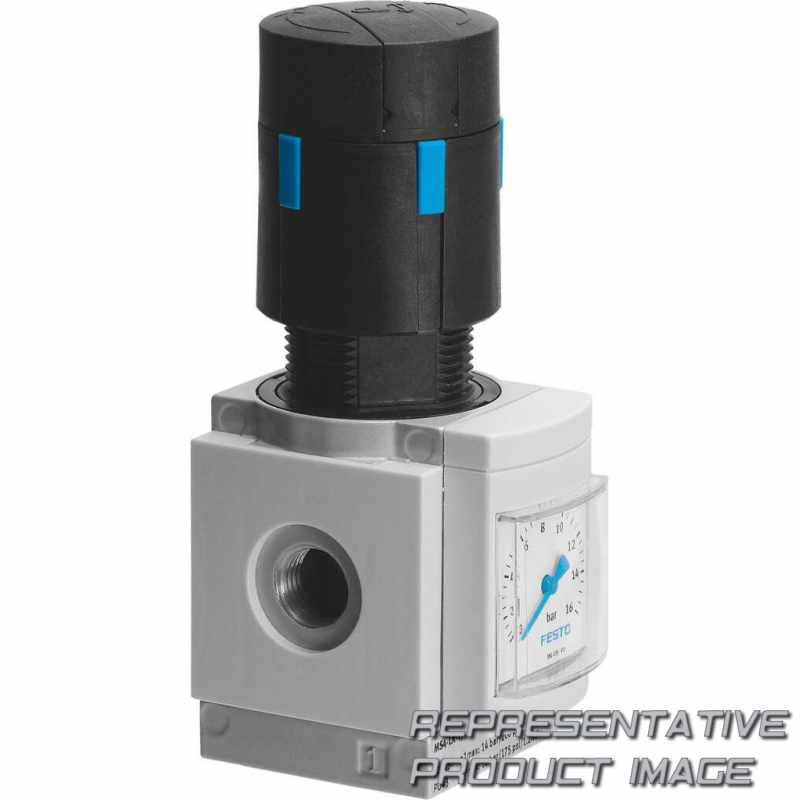

FESTO 527665 Druckregelventil

Name: 527665 FESTO
Brand: FESTO
SKU: 713610-de-eur
Price: 73.04 EUR
Availability: SoldOut

MS6-LRB-AGB-D6

73,04 € ~~97,38 €~~ -24%

Begrenzter Lagerbestand nur auf Anfrage erhältlich

Technische Daten

Baureihe (MS)	MS series
Baugröße (6)	Grid dimension 62 mm
Funktion (LRB)	Pressure regulator for manifold assembly
Pneumatischer Anschluss (AGB)	Sub-base G1/4
Druckregelbereich (D6)	0.3 ... 7 bar
Pressure gauge alternatives	None
Alternative pressure gauge scale	MS pressure gauge
Secondary exhausting	With secondary exhausting

Rotary knob alternative	None
Alternative mounting position	None
Lockability	None
Alternative pressure outlet	None
Befestigungsart	Without mounting bracket
EU certification	None
UL certification	None
Outlet direction	Pressure output to the rear

Werkstoff Membran		NBR
Werkstoff Dichtungen		NBR
Werkstoff-Hinweis		RoHS-compliant
Produktgewicht		730 g
Mediumstemperatur		-10 °C ... 60 °C
Lagertemperatur		-10 °C ... 60 °C
Hinweis zum Betriebs-/Steuermedium		Lubricated operation possible (in which case lubricated operation will always be required)
Ex-Umgebungstemperatur		-10°C <= Ta <= +60°C
Ex-Zündschutzart Gas		Ex h IIC T6 Gb X
ATEX-Kategorie Gas		II 2G
CE-Zeichen (siehe Konformitätserklärung)		To EU Explosion Protection Directive (ATEX)
Standard nominal flow rate		600 l/min ... 7.300 l/min
Druckregelbereich		0,3 bar ... 16 bar
Pressure gauge (ANALOG) or Pressure display (DIGITAL)		Prepared for G1/4 Prepared for G1/8 Via pressure sensor With pressure gauge Via pressure gauge in the rotary knob
Konstruktiver Aufbau		Pressure regulator with pressure gauge
Actuator lock		Rotary knob with detent Rotary knob with integrated lock can be closed with accessories
Baugröße		6

Werkstoff Gehäuse		Die-cast aluminium
Material control panel		PA POM
Befestigungsart		Front panel mounting In-line installation With accessories Either:
Umgebungstemperatur		-10 °C ... 60 °C
Lebensmitteltauglichkeit		See supplementary material information
Korrosionsbeständigkeitsklasse KBK		2 - Moderate corrosion stress
Betriebsmedium		Compressed air to ISO 8573-1:2010 [7:4:4] Inert gases
Ex-Zündschutzart Staub		Ex h IIIC T60°C Db X
ATEX-Kategorie Staub		II 2D
Explosionsschutz		Zone 1 (ATEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 22 (ATEX)
Zulassung		c UL us - Recognized (OL)
Max. Druckhysterese		0,25 bar
Betriebsdruck		0,8 bar ... 20 bar
Controller function		Output pressure constant Via primary pressure compensation With secondary venting
Einbaulage		optional
Baureihe		MS
