FESTO MHE2
12 Produkte

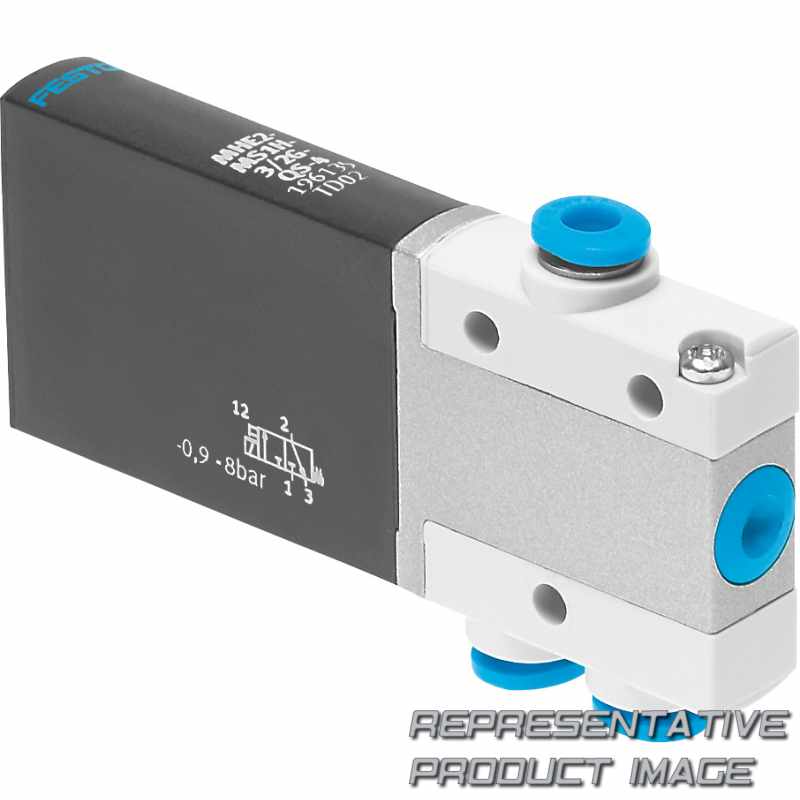

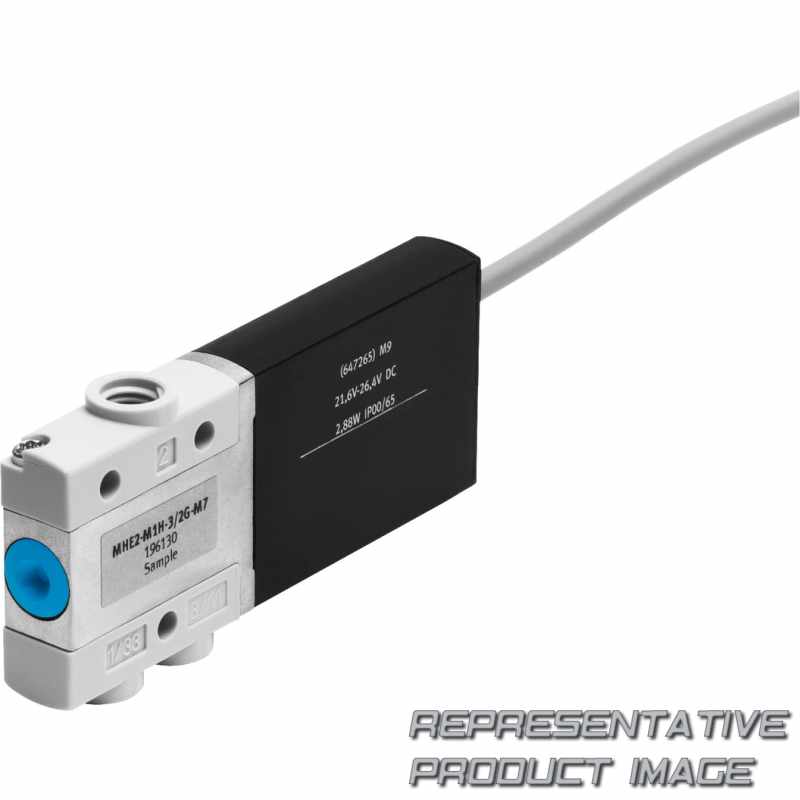

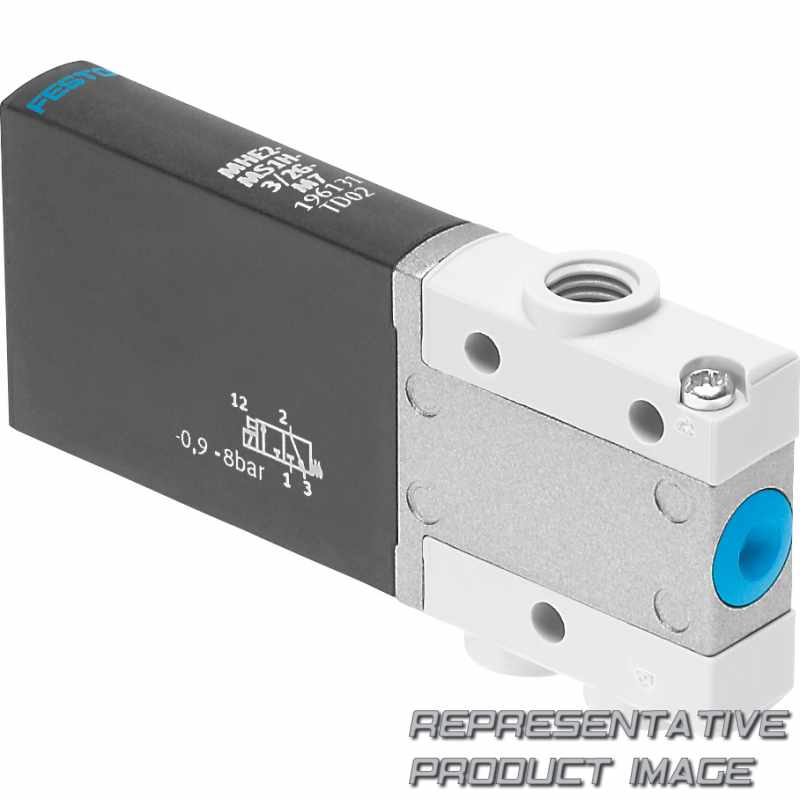

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO MHE2 – Solenoid valve MHE2. Finden Sie das passende Produkt durch Filtern mit Normale Position, Pneumatischer Anschluss und Elektrischer Anschluss.
MHE2 Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| MHE2 | MHE2-M-1-H- - | Solenoid valve MHE2 |
Typcode zur Katalognummer MHE2,
MHE2-M-1-H- -
| 001 | Series |
|---|---|
| MHE2 | Solenoid valve MHE2 |
| 002 | Drive system |
| M | Solenoid, switching |
| 003 | Nominal operating voltage |
| 1 | 24 V DC |
| 004 | Manual override |
| H | Non-detenting |
| 005 | Valve function |
| 3/2 | 3/2-way valve |
| 5/2 | 5/2-way valve |
| 006 | Normal position |
| 5/2-way valve | |
| G | Closed |
| O | Open |
| 007 | Pneumatic connection |
|---|---|
| 2 | Sub-base, nominal width 2 mm |
| 3 | Sub-base, nominal width 3 mm |
| 4 | Sub-base, nominal width 4 mm |
| 1/8 | Thread G1/8 |
| 1/4 | Thread G1/4 |
| M5 | Thread M5 |
| M7 | Thread M7 |
| QS-4 | Push-in connector, 4 mm |
| QS-6 | Push-in connector 6 mm |
| QS-8 | Push-in connector 8 mm |
| 008 | Electrical connection |
| Plug tabs | |
| K | Moulded cable, 2.5 m long |
