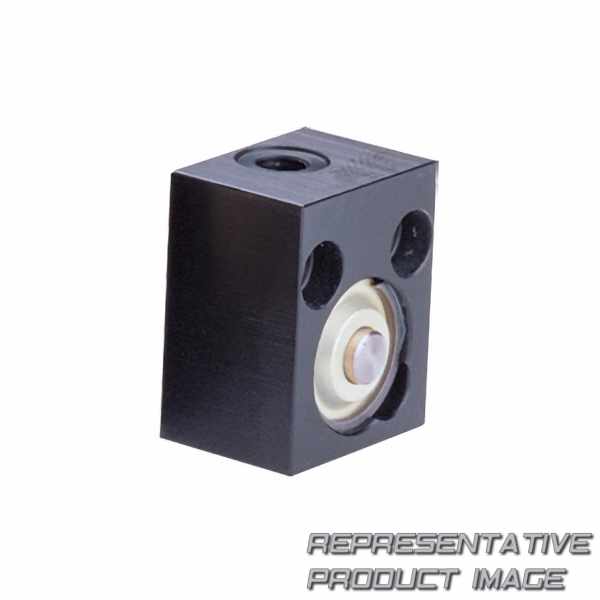

NORGREN M/50112/4 clamping single acting cylinder

Name: M/50112/4 NORGREN
Brand: NORGREN
SKU: 777464-de-eur
Price: 192.65 EUR
Availability: InStock

192,65 €

1 Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Hub	4 mm
max. Druck	2 ... 10 bar

Dichtung	nitrile rubber
Außendurchmesser	12 mm

barrel		anodised aluminium
cylinder diameter metric length millimetre		12 mm
Medium		compressed air
operating pressure pressure bar min to max range		2 ... 10 bar
operating temperature temperature celsius min to max range		-10 ... 70 °c
piston rod diameter metric length millimetre		6 mm
piston rod seals		nitrile rubber
Anschlussgröße		m5
range		m/50100
sprung in or sprung out		sprung in
theoretical force force newton		55 n

Dämpfung		no cushioning
data performance shelf life		3 years
minimum operating pressure pressure bar		2 bar
operating temperature f temperature fahrenheit min to max range		14 ... 158 °f
operation		single acting
piston rod material		stainless steel (austenitic)
piston rod thread type		female
product style		compact
rod type		standard
stroke length metric length millimetre		4 mm
