| Industriekomponente | 25 | mm | |
| B | 12 | ||
| G | M4 | ||
| J | 25 | ||
| Linie | 300 | mm | |
| N1 | 3,20 | ||
| C | 38.622 | mm | |
| Stroke min. | 152 | mm | |
| J2 | 5 | mm | |
| G2 | M3 | ||
| t1 | 4,30 | mm | |

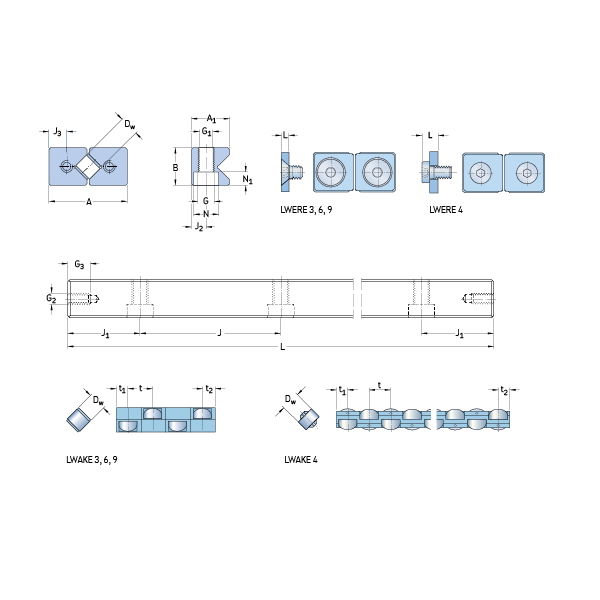

| Rail designations | LWRE 4300 | ||
| End piece designations | LWERE 4 |
| A1 | 12 | mm | |
| Dw | 6,50 | mm | |
| G1 | 3,30 | mm | |
| J1 | 12,50 | mm | |
| N | 6 | mm | |
| Drehmoment | 8 | mm | |
| C0 | 58.240 | N | |
| Stroke max. | 200 | mm | |
| J3 | 5 | mm | |
| G3 | 6 | mm | |
| t2 | 4,30 | mm | |
| Cage designations | LWAKE 4x28 |
