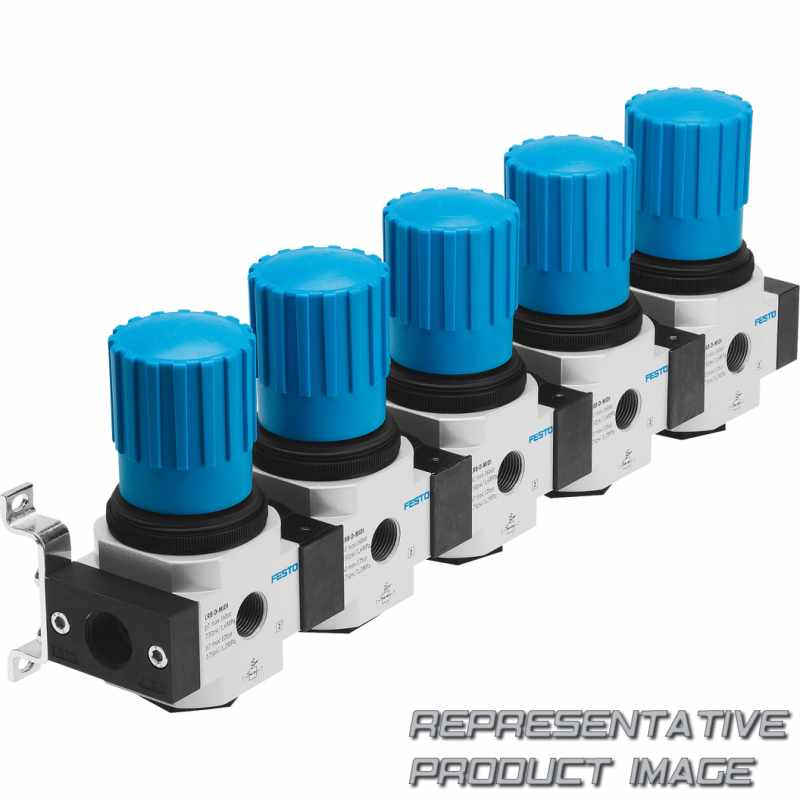

FESTO LRB
22 Produkte
Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO LRB – Pressure regulator. Finden Sie das passende Produkt durch Filtern mit Pneumatischer Anschluss, Ausführung, Pressure regulator und Baugröße.
LRB Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| LRB | LRB- - -7-O- - | Pressure regulator |
| LRB | LRB-D-7-O- | Pressure regulator |
Typcode zur Katalognummer LRB,
LRB- - -7-O- -
| 001 | Series |
|---|---|
| LRB | Pressure regulator |
| 002 | Pneumatic connection |
| 1/4 | Female thread G1/4 |
| 3/8 | Female thread G3/8 |
| 1/2 | Female thread G1/2 |
| 003 | Version |
| D | D series, metal |
| DB | D series, polymer |
| 004 | Pressure regulation range |
| 7 | 0.5 ... 7 bar (0.05 ... 0.7 MPa) 0.5 ... 12 bar (0.05 ... 1.2 MPa) |
| 005 | Pressure gauge |
|---|---|
| O | Without pressure gauge |
| 006 | Pressure regulator |
| K2 | Regulator manifold, 2 positions |
| K3 | Regulator manifold, 3 positions |
| K4 | Regulator manifold, 4 positions |
| K5 | Regulator manifold, 5 positions |
| 007 | Size |
| MINI | Grid dimension 40 mm (without connecting plates) |
| MIDI | Grid dimension 55 mm (without connecting plates) |
Typcode zur Katalognummer LRB,
LRB-D-7-O-
| 001 | Series |
|---|---|
| LRB | Pressure regulator |
| 002 | Version |
| D | D series, metal |
| 003 | Pressure regulation range |
| 7 | 0.5 ... 7 bar (0.05 ... 0.7 MPa) 0.5 ... 12 bar (0.05 ... 1.2 MPa) |
| 004 | Pressure gauge |
|---|---|
| O | Without pressure gauge |
| 005 | Size |
| MINI | Grid dimension 40 mm (without connecting plates) |
| MIDI | Grid dimension 55 mm (without connecting plates) |
