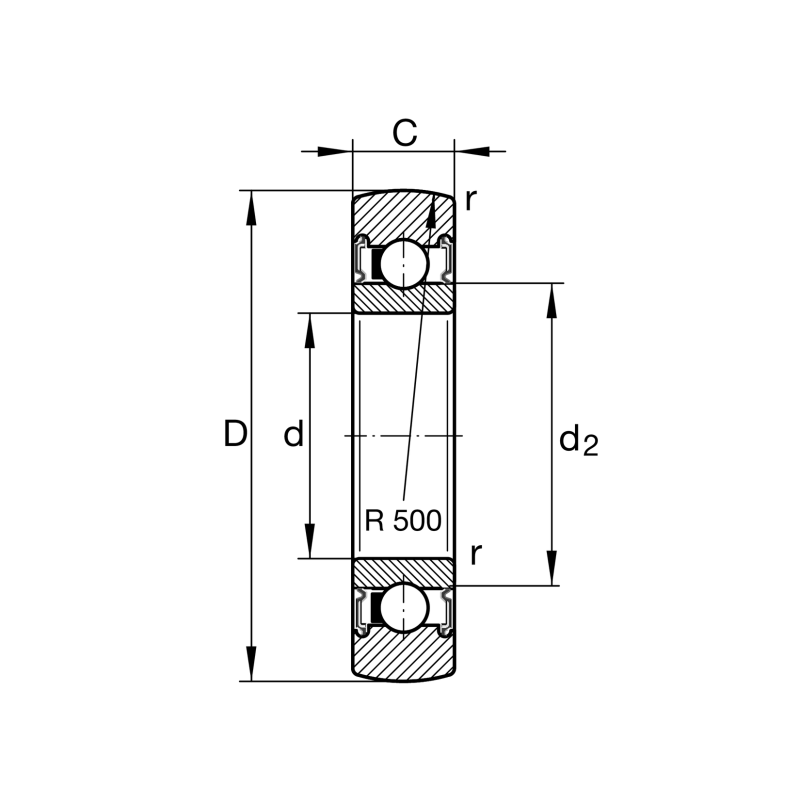

| Außen-Ø | D | 47 | mm |
| Höhe | T | 12 | mm |
| Basic static load rating, radial | C0r | 4,550 | |
| Speed on permanent grease lubrication | nD G | 9,000 |
| Bore diameter | d | 17 | mm |
| Basic dynamic load rating, radial | Cr | 8,900 | |
| Fatigue load limit, radial | Cur | 229 | N |
| Diameter of thrust washer | d2 | 24 | mm |
| Radius of outer ring outside profile | R | 500 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
