| for shaft o.d. (mm) | 30 | ||
| ball rows | 6 | ||
| inscribed bore diameter - tolerance - mm | 0-0.012 | ||
| outer diameter - tolerance - mm | 0-0.019 | ||
| overall length - tolerance - mm | 0-0.4 | ||
| flange diameter - tolerance - mm | 0-0.2 | ||
| h - mm | 10 | ||
| c - mm | 35 | ||
| flangeperpen-dicularity - µm | 20 | ||
| radialclearancetolerance - µm | -9 | ||
| basic load rating - static c0 - n | 5.490 |
| dust protection seal | with seal | ||

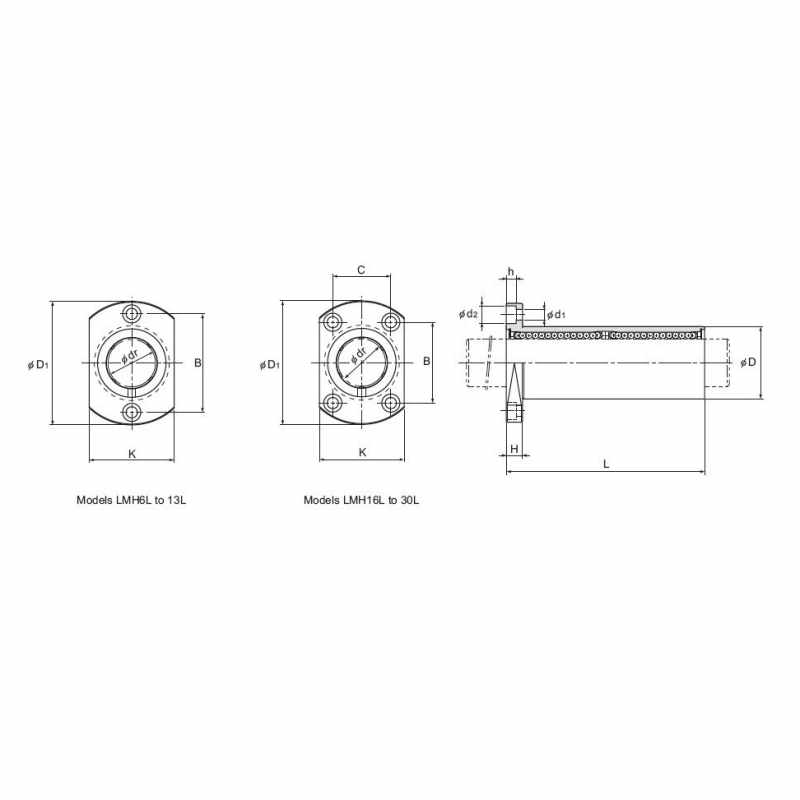

| inscribed bore diameter - dr - mm | 30 | ||
| outer diameter - d - mm | 45 | ||
| overall length - l - mm | 123 | ||
| flange diameter - d1 - mm | 74 | ||
| k - mm | 51 | ||
| b - mm | 49 | ||
| mounting holed1xd2xh - mm | 6.6x11x6.5 | ||
| eccentricity(max) - µm | 20 | ||
| basic load rating - dynamic c - n | 2.490 | ||
| mass - g | 575 |
