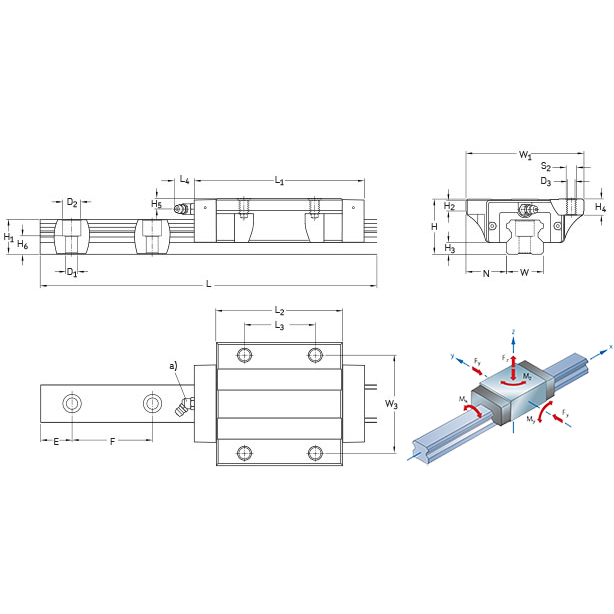

| Baugröße | 35 | ||
| N | 33 | mm | |
| H2 | 12,30 | mm | |
| L1 | 142,50 | mm | |
| L3 | 62 | mm | |
| W3 | 82 | mm | |
| H5 | 8 | mm | |
| S2 | M10 | ||
| H1 | 29 | mm | |
| Kraft | 80 | mm | |
| D2 | 14 | mm | |
| Emax | 70 | mm | |
| Gewicht | 6,60 | ||
| C0 | 79.400 | N | |
| Mx0 | 1.224 | Nm | |
| M y0/z0 | 1.246 | Nm | |
| Precision class | Medium P3 |
| W1 | 100 | mm | |
| H | 48 | mm | |
| H3 | 9,50 | mm | |
| L2 | 105,50 | mm | |
| L4 | 14,60 | mm | |
| H4 | 13 | mm | |
| D3 | 8,50 | mm | |
| W | 34 | mm | |
| H6 | 17 | mm | |
| D1 | 9 | mm | |
| Emin | 12 | mm | |
| Lmax | 3.944 | mm | |
| C | 45.000 | mm | |
| Mx | 694 | Nm | |
| M y/z | 706 | Nm | |
| Vorspannungsklasse | Light preload, 2% C T1 |
