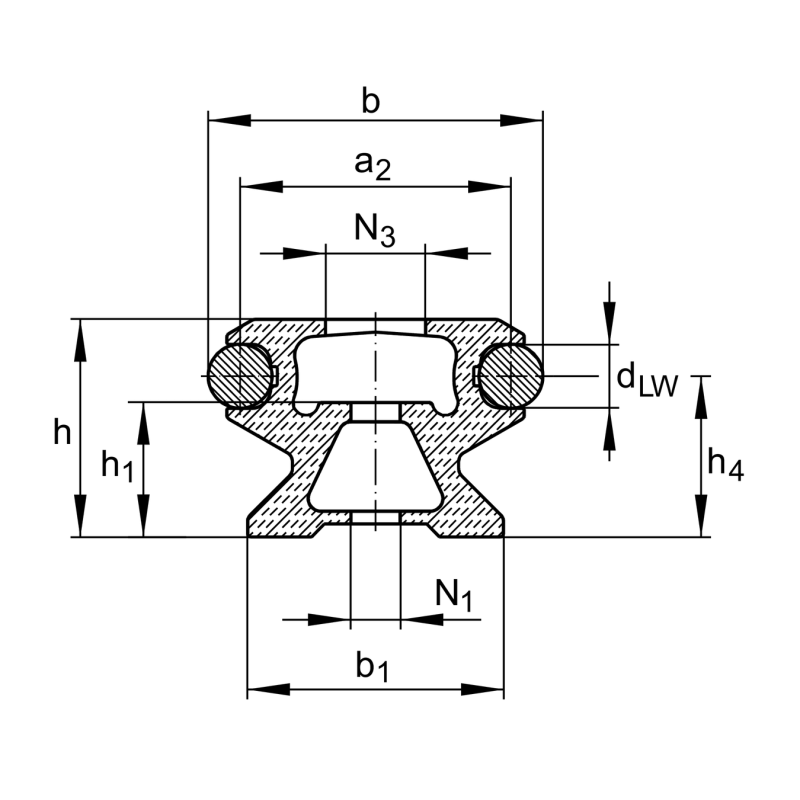

| Höhe | T | 20 | mm |

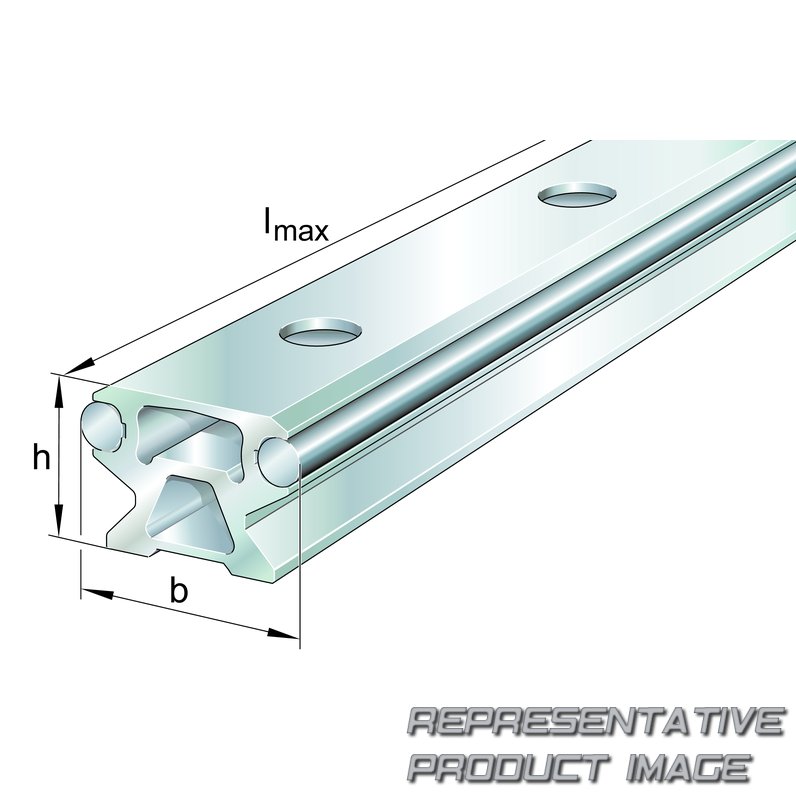

| Length maximum | lmax | 6,000 | |
| Cross-sectional area | LFQ | 358 | mm² |
| Breite | B | 42 | mm |

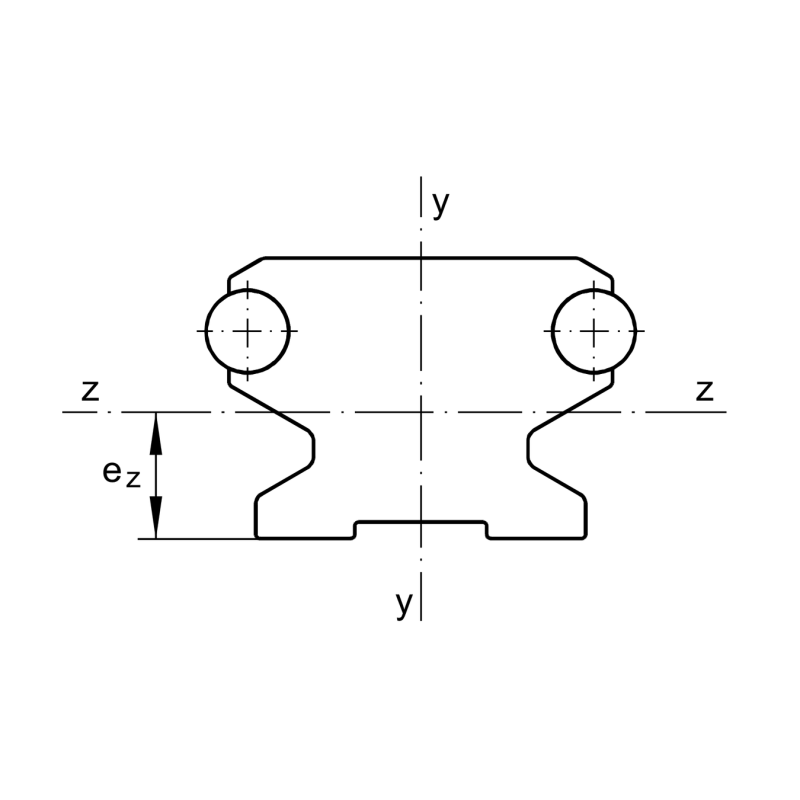

| Second moment of area | ly | 14,052 | |
| Wider resistance torque | Wy | 1,391 |
| bore diameter | D2 | 15 | mm |
| Breite | B | 28 | mm |

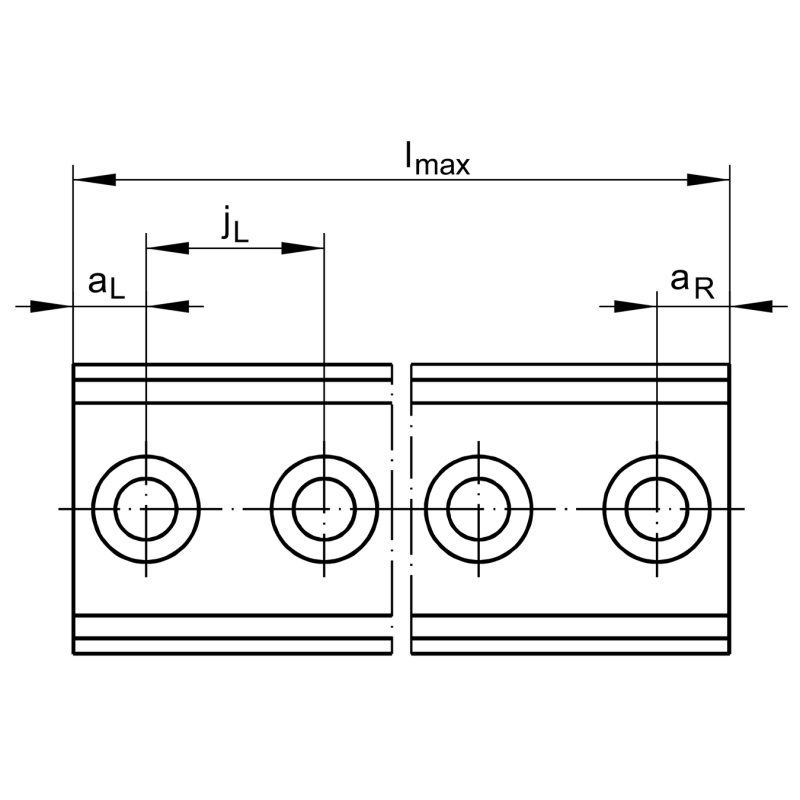

| Distance | aL max | 10,10 | mm |
| Increment | jL | 125 | mm |
| Diameter | dLW | 10 | mm |
| Höhe | H | 12,60 | mm |
