FESTO LFRS
56 Produkte

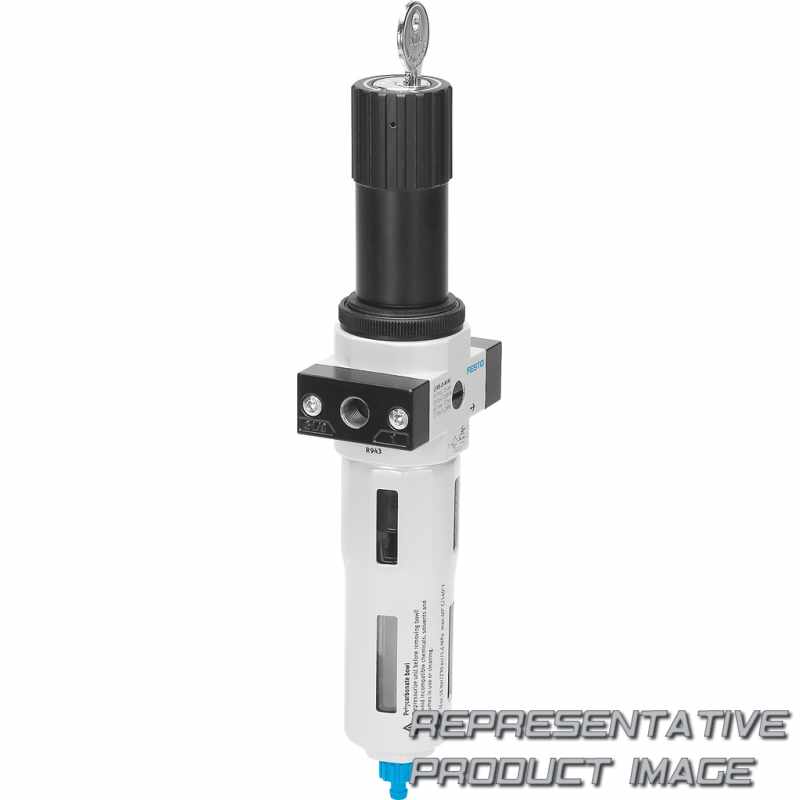

Entdecken Sie alle verfügbaren Konfigurationen für die Produktserie FESTO LFRS – Filter regulator, lockable. Finden Sie das passende Produkt durch Filtern mit Pneumatischer Anschluss, Druckregelbereich, Grade of filtration [μm], Pressure gauge, Function Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI), Baugröße und Kondensatablass.
LFRS Typcodes
| Serie | Katalognummernformat | Beschreibung |
|---|---|---|
| LFRS | LFRS- -D- | Filter regulator, lockable |
Typcode zur Katalognummer LFRS,
LFRS- -D-
| 001 | Series |
|---|---|
| LFRS | Filter regulator, lockable |
| 002 | Pneumatic connection |
| 1/8 | Female thread G1/8 |
| 1/4 | Female thread G1/4 |
| 3/8 | Female thread G3/8 |
| 1/2 | Female thread G1/2 |
| 3/4 | Female thread G3/4 |
| 1 | Female thread G1 |
| 003 | Version |
| D | D series, metal |
| 004 | Pressure regulation range |
| 7 | 0.5 ... 7 bar (0.05 ... 0.7 MPa) 0.5 ... 12 bar (0.05 ... 1.2 MPa) |
| 0.5 ... 12 bar (0.05 ... 1.2 MPa) | |
| 005 | Grade of filtration [μm] |
| 5M | 5 μm |
| 40 μm |

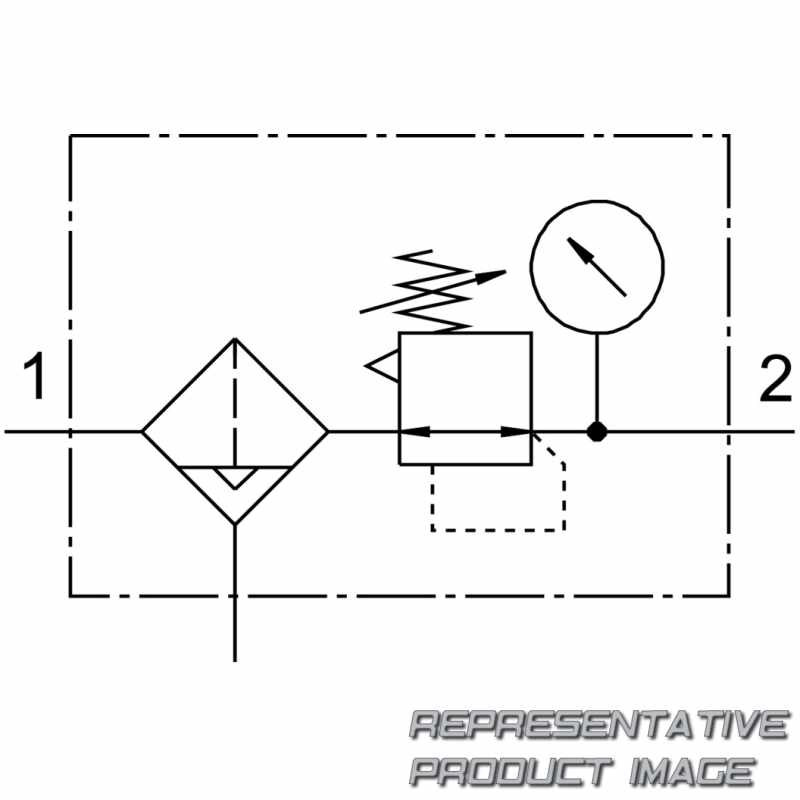

| 006 | Pressure gauge |
|---|---|
| With pressure gauge | |
| O | Without pressure gauge |
| 007 | Function Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI) |
| DI | Directly actuated pressure regulator with integrated return fl ow function (only MAXI) |
| Directly actuated pressure regulator (MICRO, MINI, MIDI), pilot actuated pressure regulator (only MAXI) | |
| 008 | Size |
| MINI | Grid dimension 40 mm (without connecting plates) |
| MIDI | Grid dimension 55 mm (without connecting plates) |
| MAXI | Grid dimension 66 mm (without connecting plates) |
| 009 | Condensate drain |
| Manually rotating | |
| A | Fully automatic |
| 010 | Display unit |
| Bar/psi/without | |
| MPA | MPa |
