| Gewicht | 1.76369 lb | ||
| insulation resistance [m ] | between case and sg: 10 (500 vdc) | ||
| storage temperature range [ c] | ?20 to 65 (no freezing) | ||
| operating temperature range [ c] | 0 to 40 (no freezing) | ||
| function - torque limit | parameter setup or external analog input setup (0 to 10 vdc) | ||
| function - positioning completion width setting range [pulse] | 0 to ?10000 (pulse command unit) | ||
| parallel output | 6 outputs | ||
| control power supply - allowable voltage range for control power supply [v] | 0,20 | ||
| control power supply - rated voltage [a] | single phase 200 to 230 vac (50/60 hz) | ||
| main power supply - allowable voltage range [v] | three phase 170 to 253 vacsingle phase 170 to 253 vac | ||
| compatible encoder | absolute 18-bit encoder (resolution: 262144 p/rev) | ||

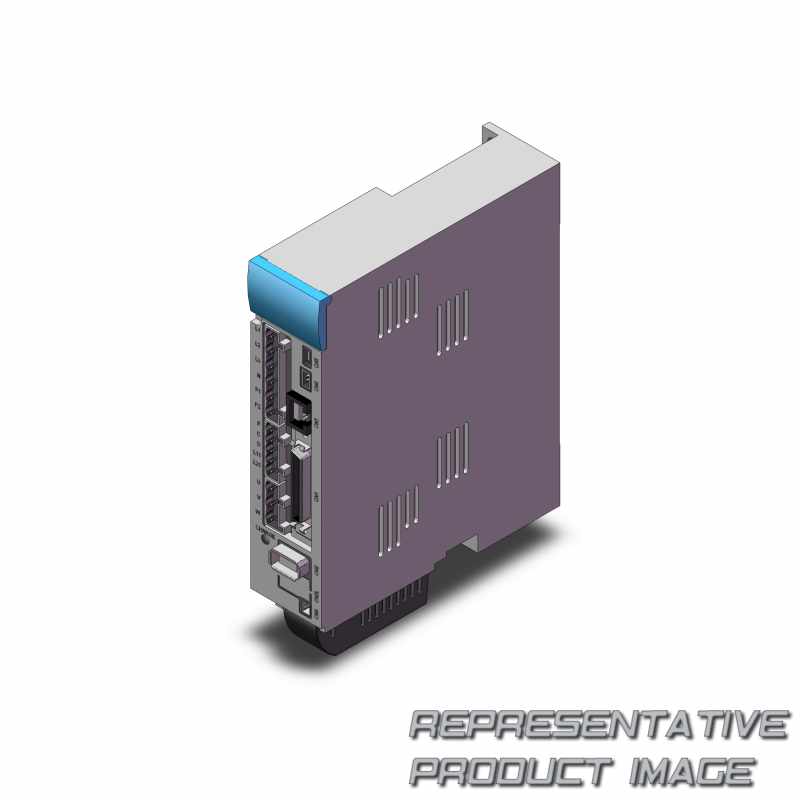

| Baureihe | lecsb2-s7 |
| weight [g] | 800 | ||
| storage humidity range [%rh] | 90 or less (no condensation) | ||
| operating humidity range [%rh] | 90 or less (no condensation) | ||
| function - communication | usb communication, rs422 communication?1 | ||
| function - error excessive | ?3 rotations | ||
| max. input pulse frequency [pps] | 1 m (when differential receiver), 200 k (when open collector) | ||
| parallel input | 10 inputs | ||
| control power supply - control power supply voltage [v] | single phase 170 to 253 vac | ||
| main power supply - rated voltage [a] | 1,50 | ||
| main power supply - power voltage [v] | three phase 200 to 230 vac (50/60 hz) single phase 200 to 230 vac (50/60 hz) | ||
| compatible motor capacity [w] | 200 |
