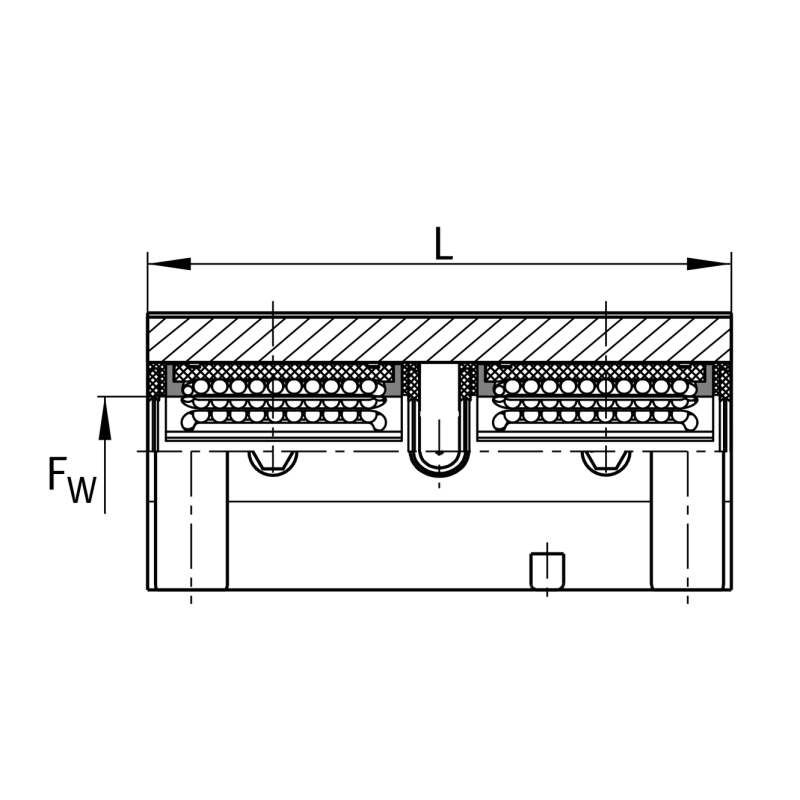

| Diameter of ball complement | FW | 30 | mm |
| Länge | L | 142 | mm |
| load capacity dyn. | Cmin | 9,600 |
| heigth | H | 70 | mm |
| Breite | B | 87 | mm |
| Load capacity stat. | C0 max | 12,000 |

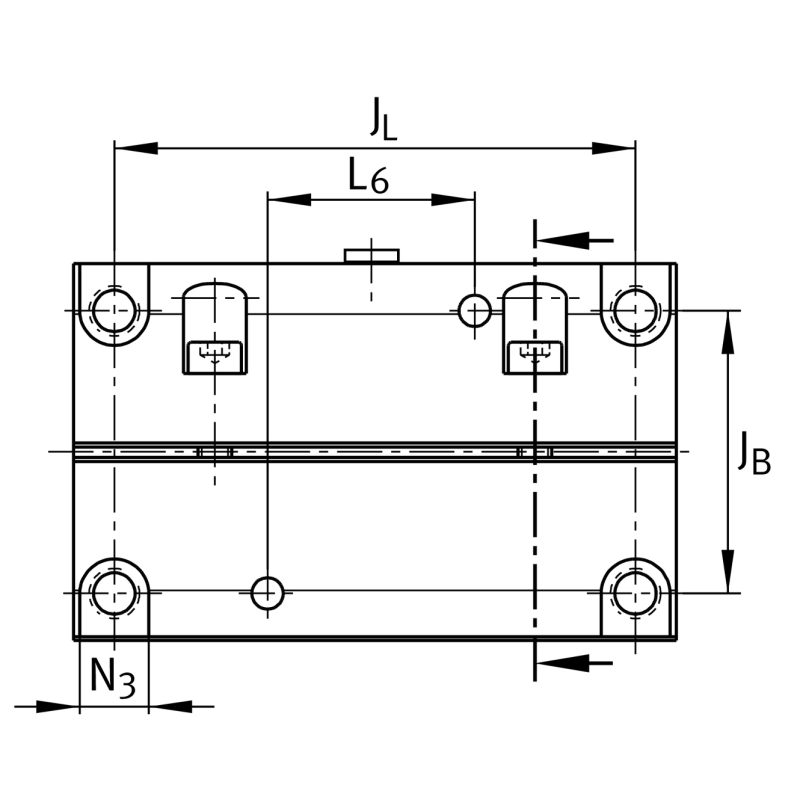

| Distance | JL | 54 | mm |
| Upper tolerance | Tol A5 | +0,008 | |
| Mounting dimension | JB | 15 | mm |
| Schlüsselweite | W | 5 | mm |
| Center height | H2 | 35 | mm |
| Lower tolerance | Tol H2 | -0,016 | |
| Lubrication nipple | K8 | NIP5MZ | |
| Ball rows | 8 |
| Hersteller | Teilenummer |
|---|---|
| Thomson | SP M30 TWNA |
| REXROTH | 1032-630-20 |
