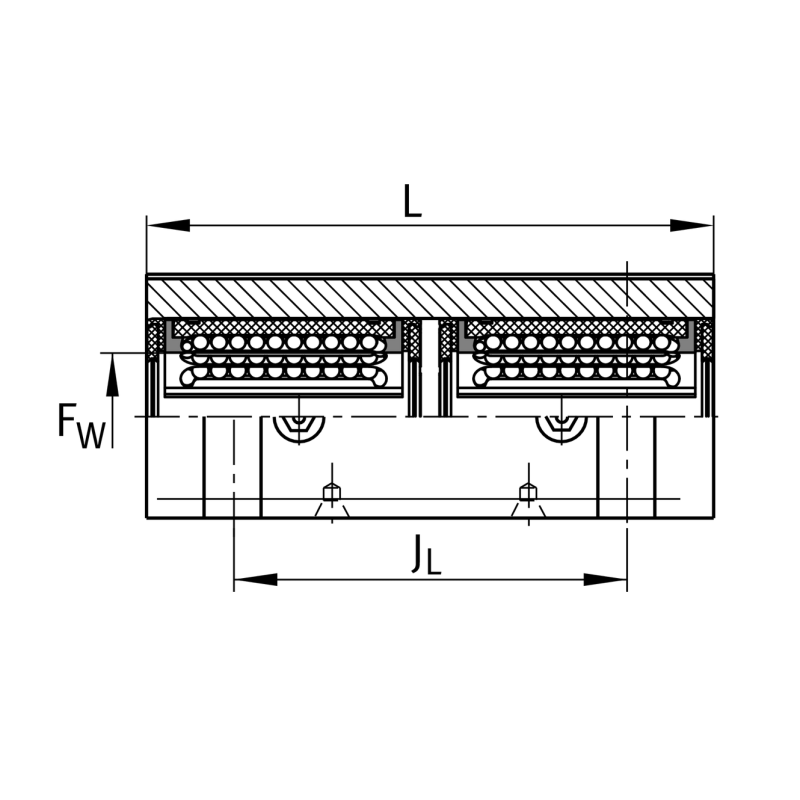

| Diameter of ball complement | FW | 16 | mm |
| Länge | L | 78 | mm |
| load capacity dyn. | Cmin | 2,330 |

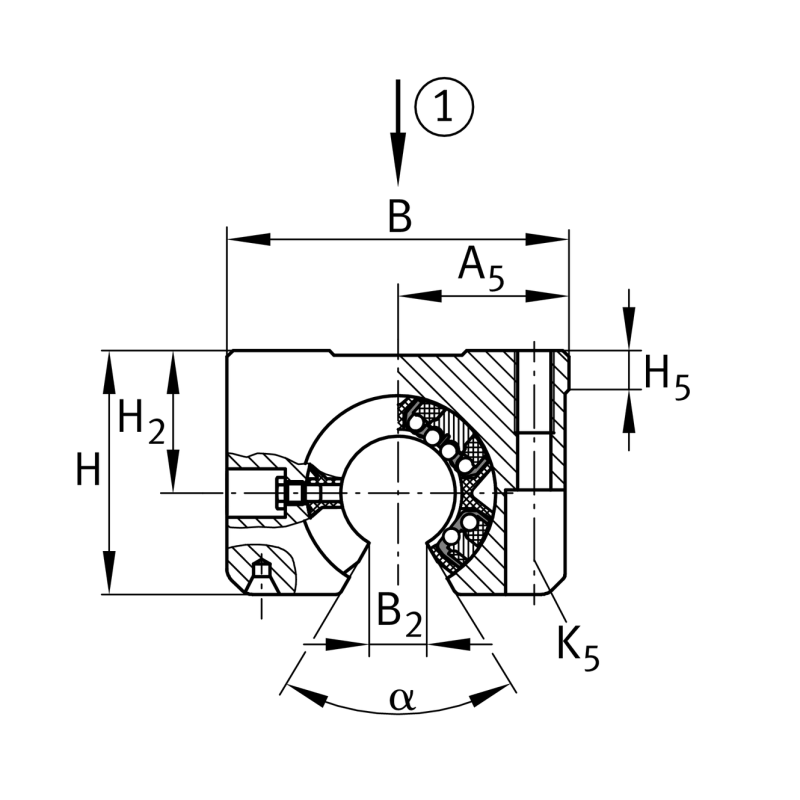

| heigth | H | 35 | mm |
| Breite | B | 53 | mm |
| load capacity stat. | C0 min | 3,100 |

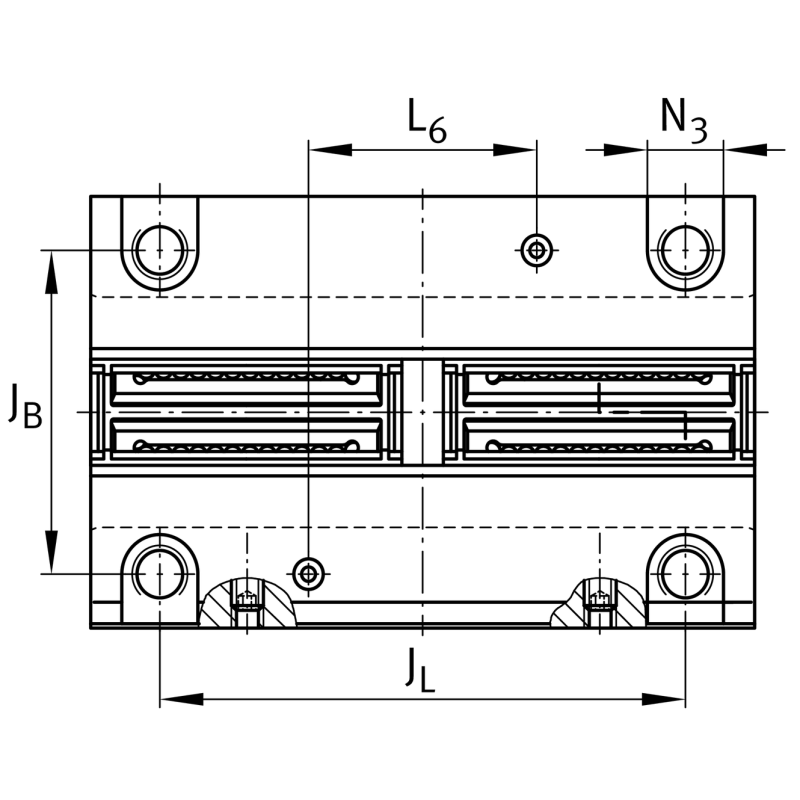

| Distance | JL | 26 | mm |
| Upper tolerance | Tol A5 | +0,008 | |

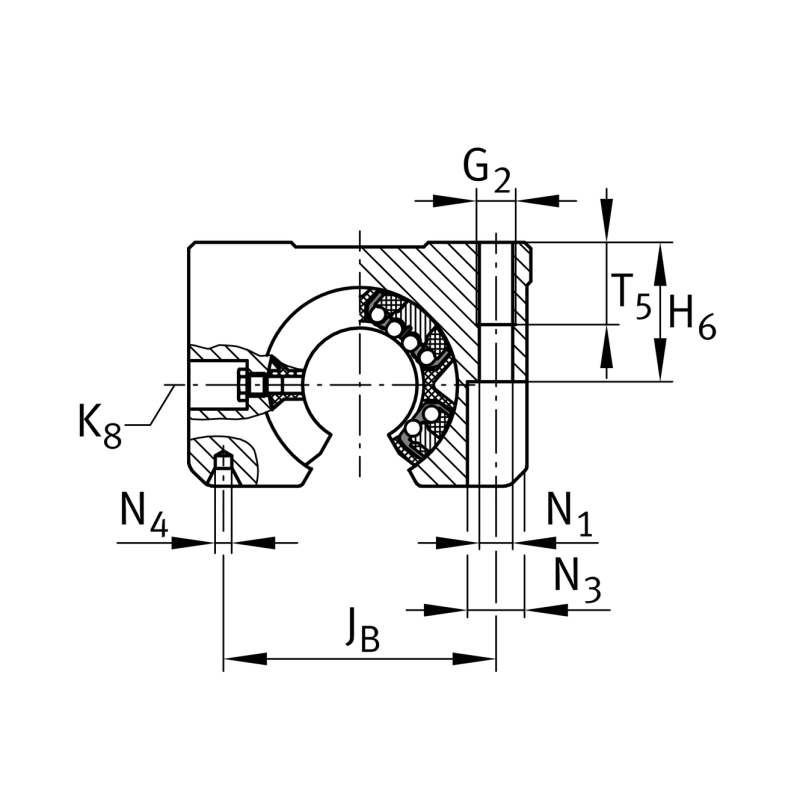

| Mounting dimension | JB | 10 | mm |
| Ball rows | 6 |
| Center height | H2 | 22 | mm |
| Lower tolerance | Tol H2 | -0,016 | |
| Lubrication nipple | K8 | NIP4MZ | |
| Angle | α | 68 | ° |
| Hersteller | Teilenummer |
|---|---|
| Thomson | SP M16 TWNO |
| Rodriguez | AG-OP-16-S |
| Nippon Bearing | TKE 16 WUU |
| Rodriguez | TAGI-OP 16 S |
