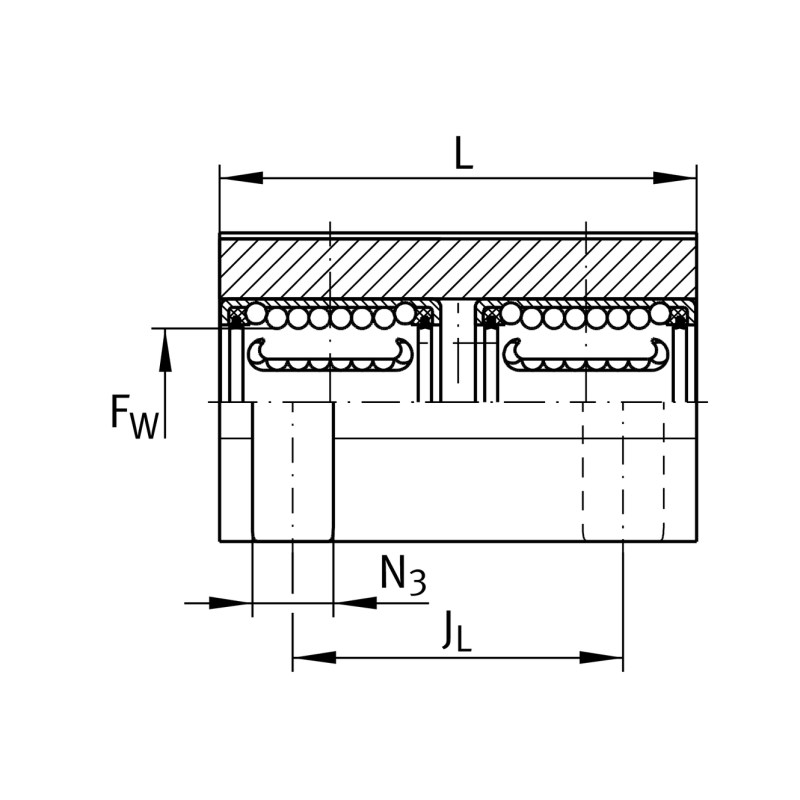

| Diameter of ball complement | FW | 40 | mm |
| Länge | L | 125 | mm |
| load capacity dyn. C | Cmin | 8,600 |
| Höhe | T | 73,50 | mm |

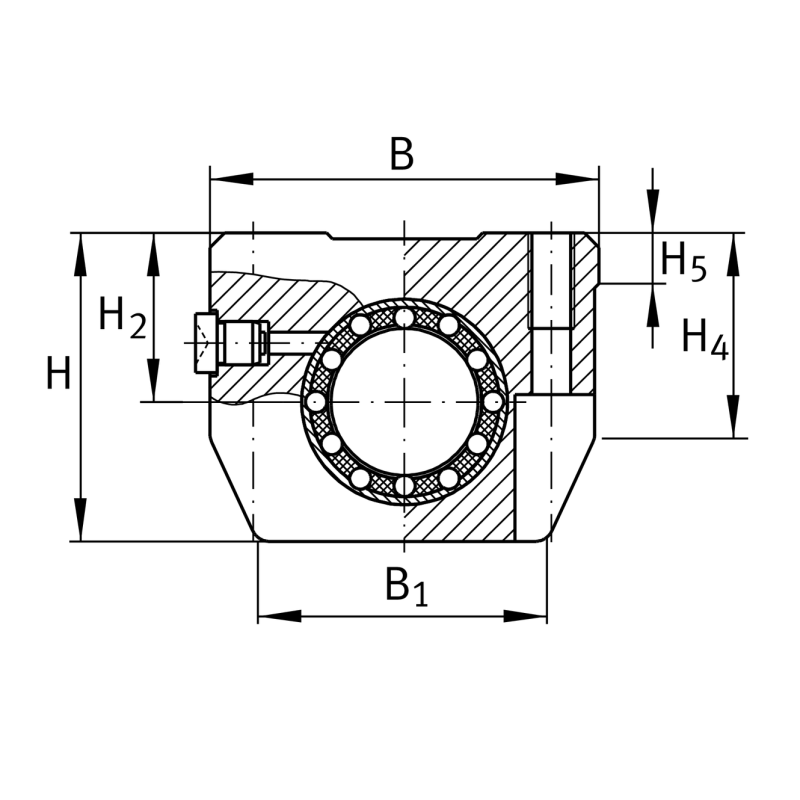

| Breite | B | 87 | mm |
| load capacity stat. C0 | C0 | 6,900 |
| Distance | JL | 85 | mm |
| Upper tolerance | Tol A5 | +0,010 | |

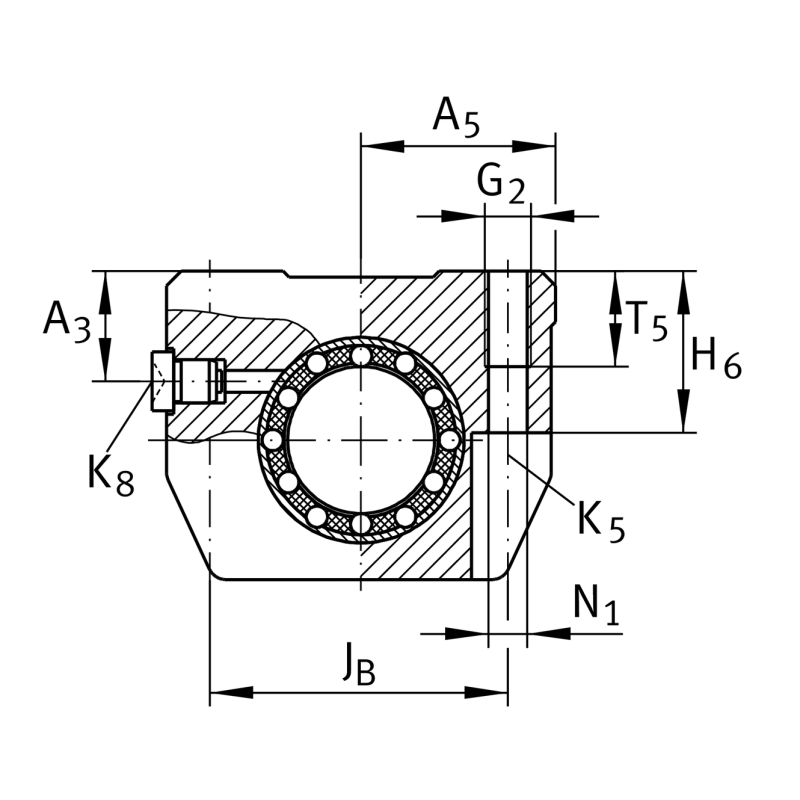

| Mounting dimension | JB | 18 | mm |
| Center height | H2 | 39 | mm |
| Lower tolerance | Tol H2 | -0,014 | |
| Lubrication nipple | K8 | NIPA2 |
| Hersteller | Teilenummer |
|---|---|
| Rodriguez | TAGC 40 C |
| EWELLIX | LTBR40 (EWELLIX) |
| Dr-Tretter | AG85-240 |
