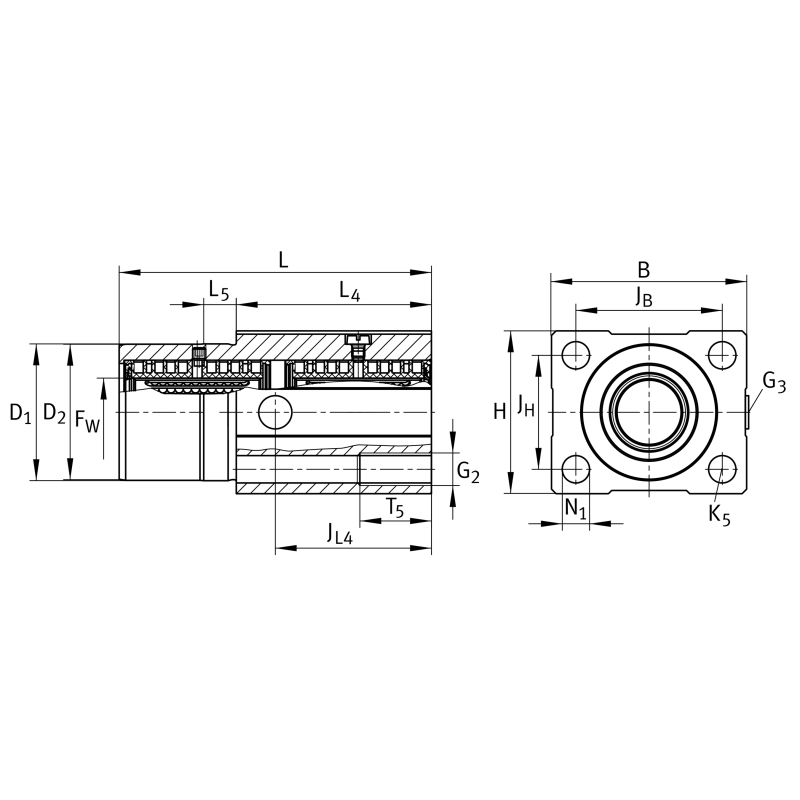

| Diameter of ball complement | FW | 20 | mm |
| Länge | L | 96 | mm |
| load capacity dyn. C | Cmin | 3,100 |
| heigth | H | 50 | mm |
| Breite | B | 60 | mm |
| load capacity stat. C0 | C0 | 3,200 |
| Mounting dimension | JB | 45 | mm |
| Tolerance | g7 | ||
| Lower tolerance | Tol H2 | -0,15 | |
| diameter | D1 | 8,40 | mm |
| Ball rows | 8 |
| Distance | JL | 48 | mm |
| Upper tolerance | Tol A5 | +0,15 | |
| Thread depth | K1 | 22 | mm |
| Thread size | G2 | M8x1 |
| Hersteller | Teilenummer |
|---|---|
| NADELLA | TFE20 |
| REXROTH | 1083-620-20 |
