| Number of rows balls | 6 | ||
| L2 | 3 | mm |

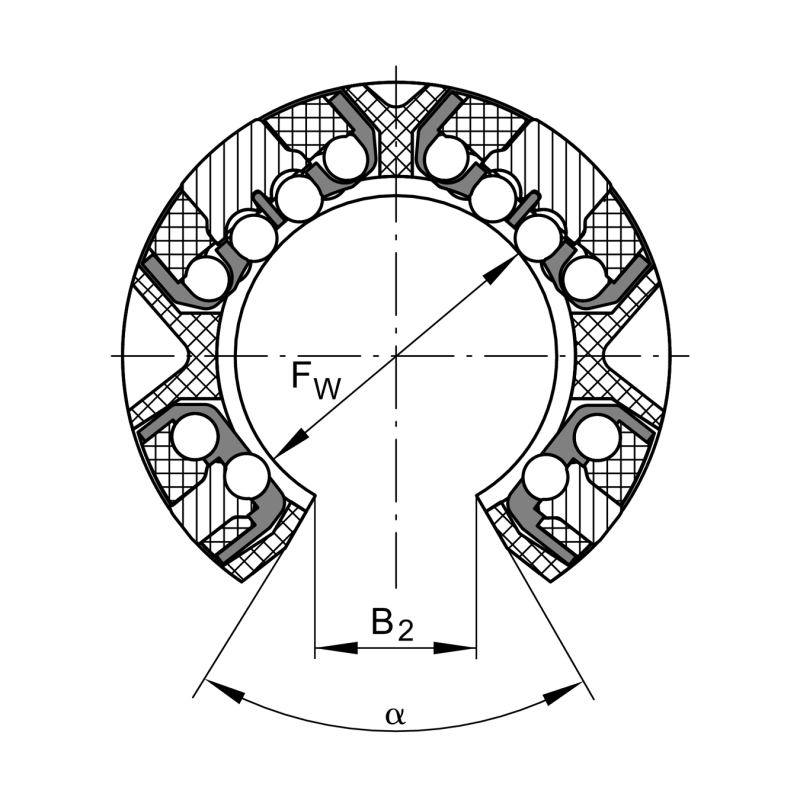

| Width of sector opening | B2 | 18,20 | mm |
| Angle of sector opening | α | 54 | ° |
| Bore diameter of ball complement | FW | 40 | mm |

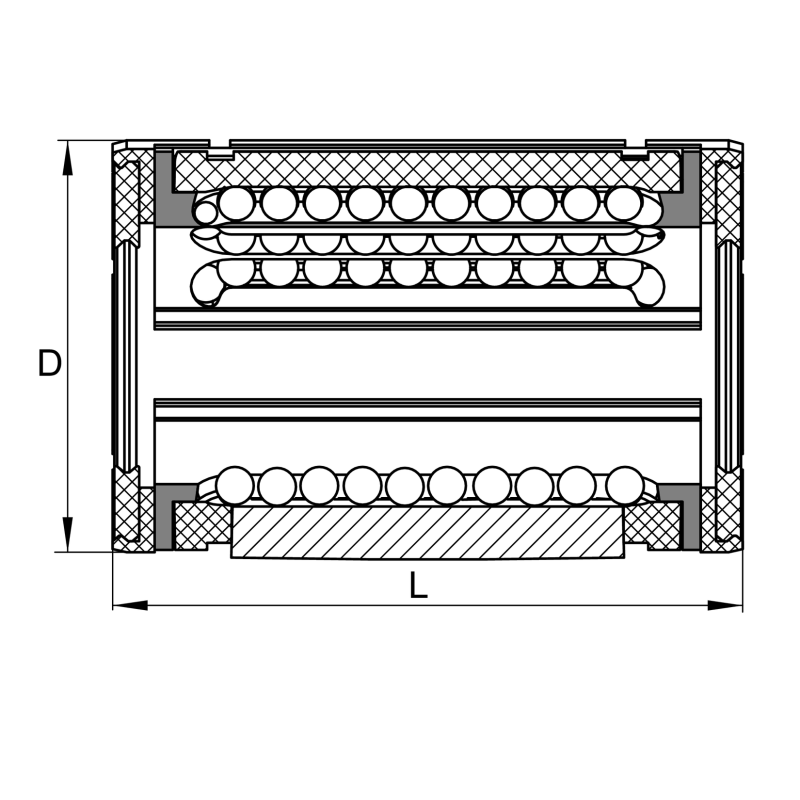

| Länge | L | 80 | mm |
| load capacity stat. | C0 min | 9,600 |
| Außen-Ø | D | 62 | mm |
| load capacity dyn. | Cmin | 10,200 |
| Hersteller | Teilenummer |
|---|---|
| NADELLA | SB40-OP |
| Nippon Bearing | TK 40 OP |
| SKF | LBCF 40 |
| Rodriguez | LMES 40 OP |
| Thomson | SP M40 OPN |
| Korb | SPO40x62x80 |
