INA KRE40-PP

0055916190000

67,23 € ~~75,69 €~~ -11%

50+ Stk. mit 1 bis 3 Tagen Lieferzeit nach United States

Technische Daten

Breite	58mm
Innendurchmesser	M18X1,5

Außendurchmesser	40mm
Gewicht	248,70g

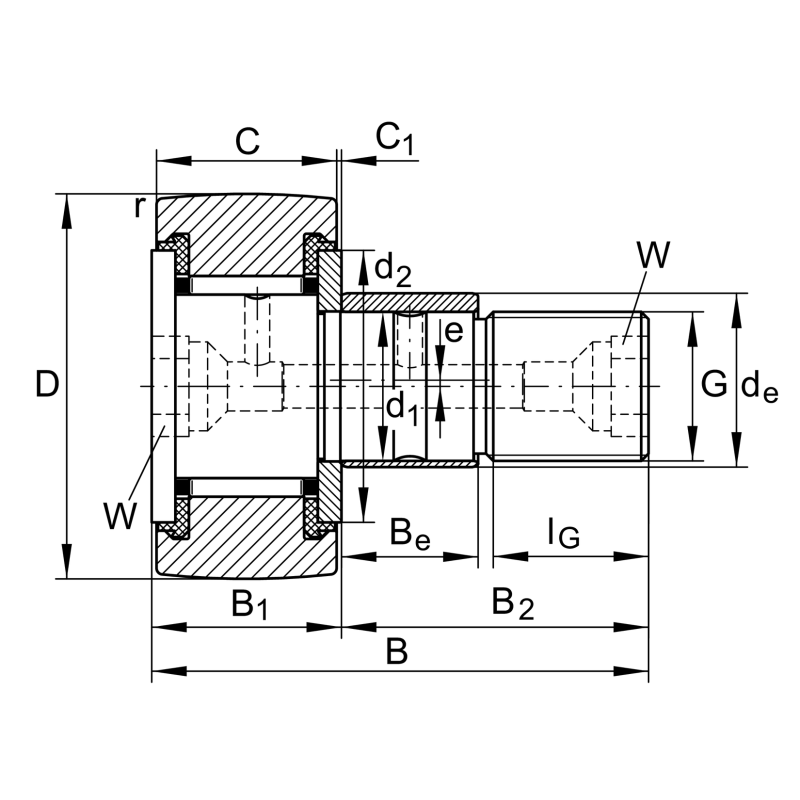

Außen-Ø	D	40	mm
Breite	B	58	mm
Basic static load rating, radial	C_0r	16,000
Speed on permanent grease lubrication	n_{D G}	2,900

Fit diameter of roller stud / stud	d₁	18	mm
Basic dynamic load rating, radial	C_r	10,900
Fatigue load limit, radial	C_ur	2,130

Witdh of thrust washer	B₁	21,60	mm
Distance to lubrication hole	C_a	8	mm
Protrusion outer ring to thrust washer	C₁	0,80	mm
Stop diameter of thrust washer	d₂	31,50	mm
Gewinde		M18X1,5
Nominal dimension for hexagonal socket	W	8	mm
Width, eccentric	B_e	16	mm

Bolt/stud length effectively	B₂	36,50	mm
Width, outer ring	C	20	mm
Minimum chamfer dimension	r_min	1	mm
Diameter lubrication hole	d_s	3	mm
Thread length	I_G	19	mm
Diameter of eccentric	d_e	22	mm
Eccentricity	e	1	mm
