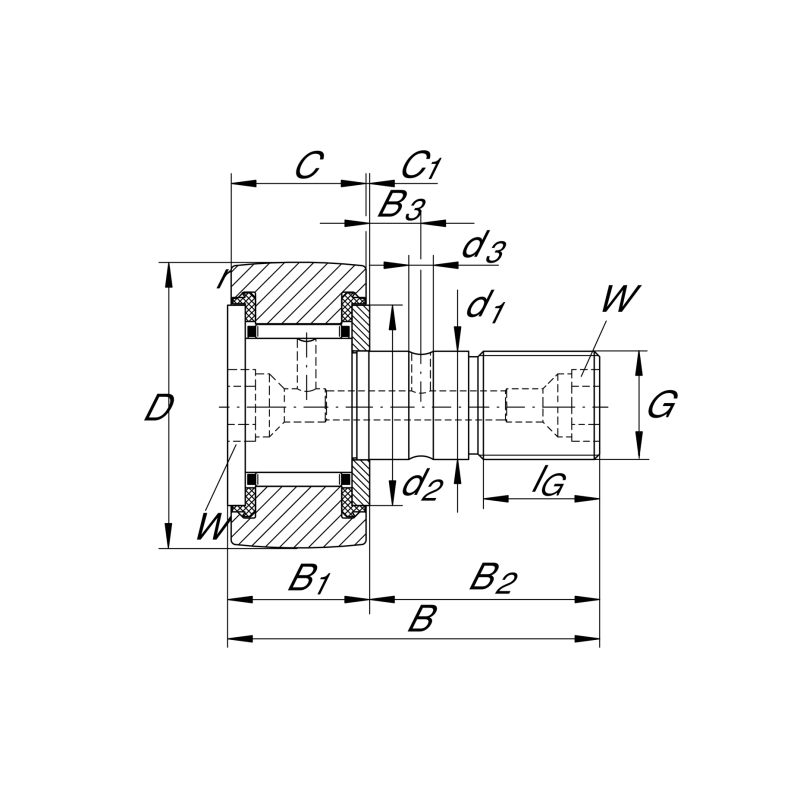

| Außen-Ø | D | 30 | mm |
| Width of the roller stud | B | 40 | mm |
| Basic static load rating, radial | C0r | 8,700 | |
| Speed on permanent grease lubrication | nD G | 5,500 |
| Fit diameter of roller stud / stud | d1 | 12 | mm |
| Basic dynamic load rating, radial | Cr | 6,800 | |
| Fatigue load limit, radial | Cur | 1,240 |
| Maximum witdh of thrust washer | B1 | 15,20 | mm |
| Distance to lubrication hole | Ca | 6 | mm |
| Protrusion outer ring to thrust washer | C1 | 0,60 | mm |
| Stop diameter of thrust washer | d2 | 23 | mm |
| Gewinde | M12X1,5 | ||
| Width of flats | W | 6 | mm |
| Bolt/stud length effectively | B2 | 25 | mm |
| Width, outer ring | C | 14 | mm |
| Minimum chamfer dimension | rmin | 0,60 | mm |
| Diameter lubrication hole | ds | 3 | mm |
| Thread length | IG | 13 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | KR30-PP (SKF) |
| IKO | CF12-BUUR (IKO) |
| NSK | FCJS-30R |
| KOYO | KM12UURM |
| SKF | KR30PPSK |
| IKO | CF12-UUR (IKO) |
| Misumi | CFUA12-30 |
| Misumi | CFUR12-30 |
| McGill Manufacturing | MCFR-30-S |
| NTN | KR30LL (NTN) |
| NTN | KR30 LLH/3AS (NTN) |
| NSK | FCJSB-30R |
| SKF | KR30-PP-A (SKF) |
| Jalman Precision | CF12UUR |
| NTN | KR30LL/3AS (NTN) |
