| Ball rows | 6 | ||

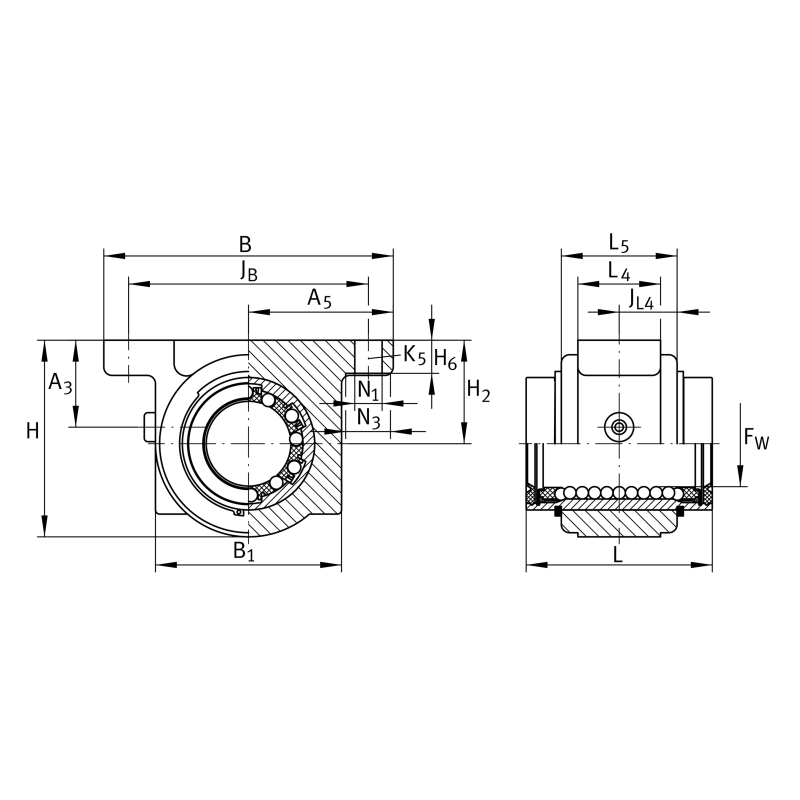

| Mounting dimension | JB | 11 | mm |
| Upper tolerance | Tol A5 | +0,015 | |
| Distance | JL | 24 | mm |
| Lubrication nipple | K8 | NIPA2 | |
| Lower tolerance | Tol H2 | -0,015 | |
| Center height | H2 | 35 | mm |
| load capacity stat. | C0 min | 2,850 | |
| Breite | B | 88 | mm |
| Länge | L | 68 | mm |
| Lower tolerance | -0,001 | ||
| Diameter of ball complement | FW | 30 | mm |
| load capacity dyn. | Cmin | 3,600 | |
| Tolerance | h12 | ||
| heigth | H | 66,50 | mm |
| Upper tolerance | +0,011 |
| Hersteller | Teilenummer |
|---|---|

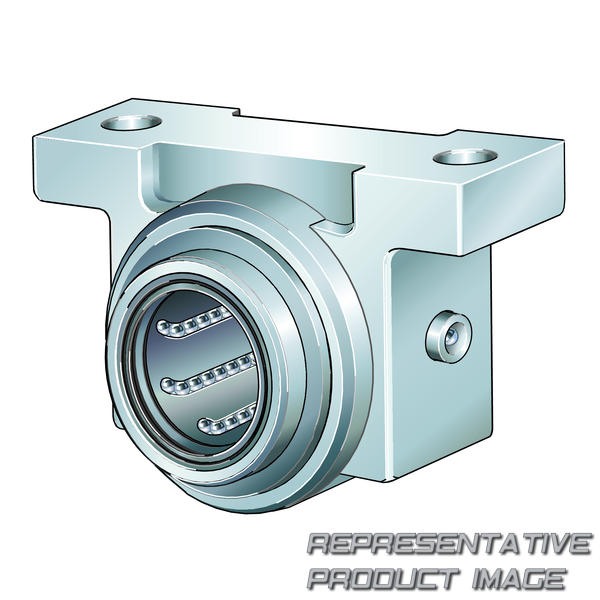

| Rodriguez | ALGS-30-S |
