| Gewicht | 1.84723 lb | ||
| ambient and fluid temperature | ?5 to 60c (no freezing) | ||
| Anschlussgröße | rc 1/4, 3/8, 1/2 | ||
| linearity (3) | within ?1% of full span | ||
| Sensitivity | within 0.2% of full span | ||
| regulating pressure range | 0.01 to 0.8 mpa | ||
| max. supply pressure | max. 1.0 mpa |
| mass (kg) | 0,71 | ||
| pressure gauge port | rc 1/8 (2 locations) | ||
| air consumption (4)(at supply pressure of 1.0 mpa) | 11.5 l/min (anr) or less | ||
| repeatability | within ?0.5% of full span | ||
| input signal (2)pressure | 0.01 to 0.8 mpa | ||
| min. supply pressure (1) | set pressure + 0.1 mpa | ||

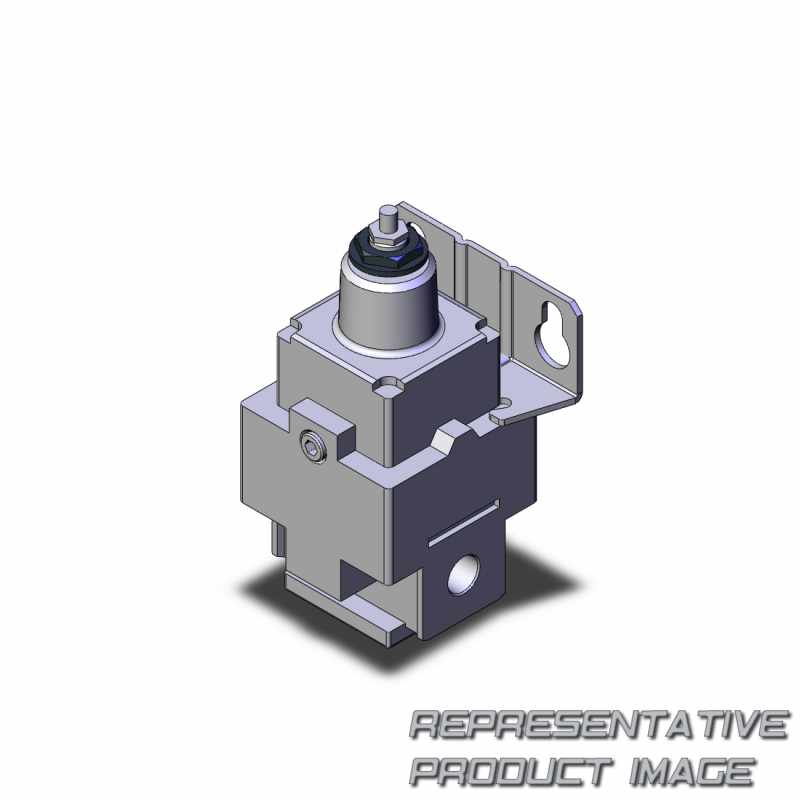

| Baureihe | ir3120 |
