| Gewicht | 3.43039 lb | ||
| port size (nominal size b) | 3/8, 1/2 | ||
| standard performance conditions - ambient temperature (oc) | 25 | ||
| standard performance conditions - inlet air temperature (oc) | 25 | ||
| standard performance conditions - outlet air flow rate (l/min [anr]) | 25 | ||
| standard performance conditions - outlet air atmospheric pressure dew point (oc) | 75 | ||
| range of operating conditions - inlet air temperature (oc) note 1) | 5 to 50 | ||
| range of operating conditions - fluid | compressed air |
| weight (kg) (with bracket) | 1.56(1.71) | ||
| dew point indicator purge air flow rate | 1 l/min [anr] {in case of inlet air pressure 0.7 mpa} | ||
| standard performance conditions - inlet air saturation temperature (oc) | 25 | ||
| standard performance conditions - purge air flow rate (l/min [anr]) note 3) | 0,70 | ||
| standard performance conditions - inlet air flow rate (l/min [anr]) note 2) | 50 | ||
| standard perfor- mance - ambient temperature (oc) note 1) | 60 | ||
| range of operating conditions - inlet air pressure (mpa) | 5 to 50 | ||

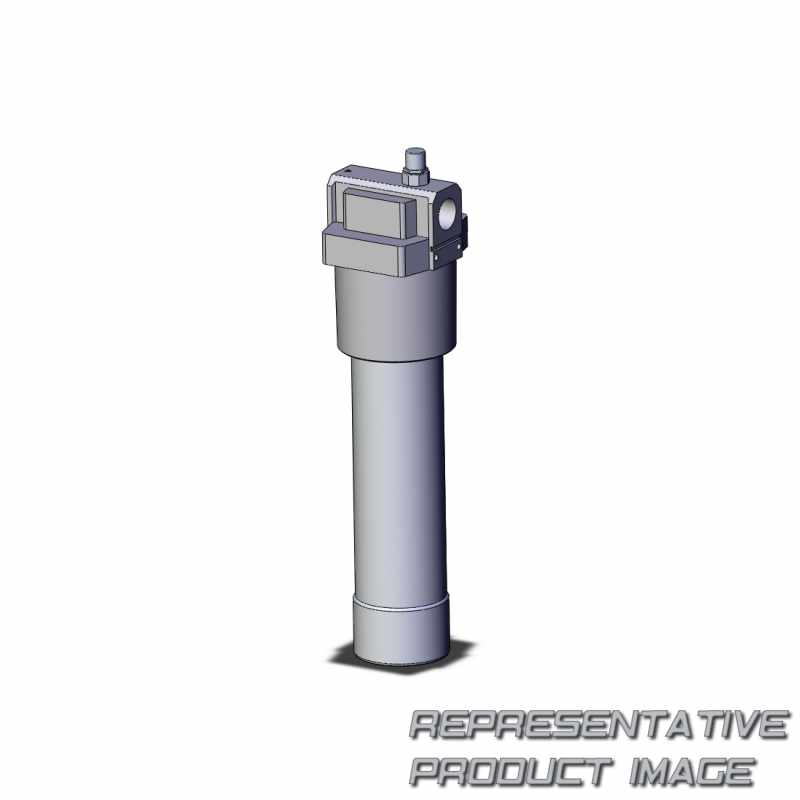

| Baureihe | idg60sa |
