| Gewicht | 374.00000 lb | ||
| mass note 10) (kg) | 170 | ||
| electrical system - alarm | refer to page 94. | ||
| electrical system - breaker capacity (a) | 30 | ||
| cooling water system - required flow note 9) (50/60 hz) (l /min) | stainless steel, epdm, copper brazing (heat exchanger), silicone, brass | ||
| cooling water system - temperature range (c) | 13/14 | ||
| circulating fluid system - port size | stainless steel, epdm, copper brazing (heat exchanger), pps, silicone, fluororesin | ||
| circulating fluid system - main tank capacity note 7) ( l ) | approx. 15 | ||
| circulating fluid system - note 5)(mpa) | 0.25/0.40 (at 20 l/min) | ||
| circulating fluid system - heating capacity note 3) (kw) | 3.3 (at 20c) | ||
| circulating fluid system - temp. range setting note 1) (c) | ?20 to 90 | ||
| ambient temp./humidity note 1) | temperature: 10 to 35c, humidity: 30 to 70%rh | ||
| refrigerant | r404a (hfc) | ||

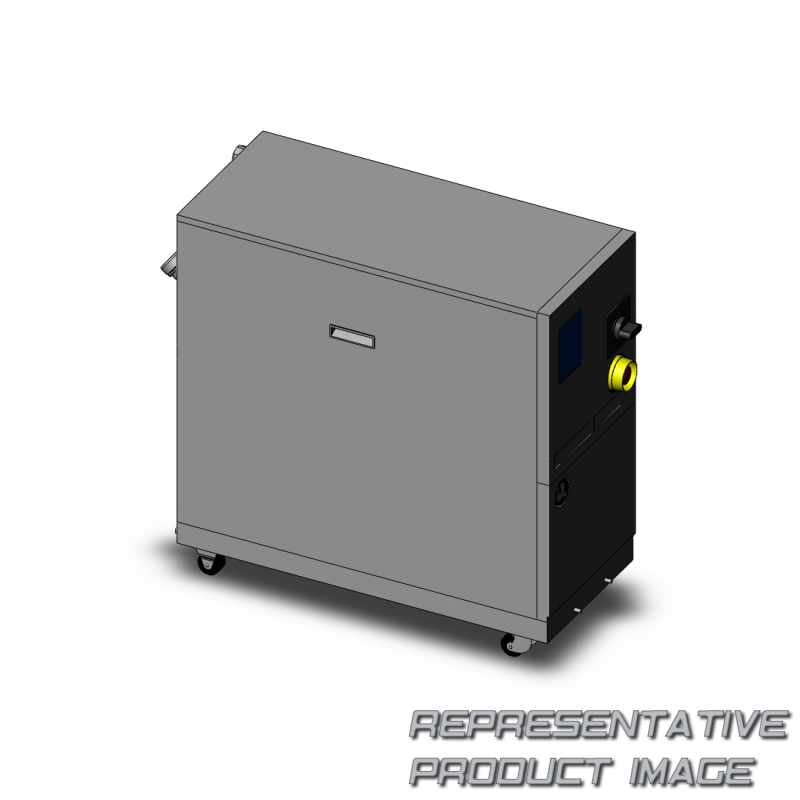

| Baureihe | hrz008-w1 |
| safety standards | ul, ce marking, semi (s2-0703, s8-0701, f47-0200), sematech (s2-93, s8-95) | ||
| electrical system - communications | contact input/output (d-sub 25 pin) and serial rs-485 (d-sub 9 pin) (refer to pages 92 and 93.) | ||
| electrical system - rated current (a) | 23 | ||
| electrical system - power supply | 3-phase 200 vac 50 hz, 3-phase 200 to 208 vac 60 hz allowable voltage fluctuation ?10% | ||
| cooling water system - pressure range (mpa) | rc 1/2 | ||
| cooling water system - wetted parts material | 0.3 to 0.7 | ||
| circulating fluid system - sub-tank capacity note 8) ( l ) | approx. 16 | ||
| circulating fluid system - rated flow note 6) (l/min) | 20 | ||
| circulating fluid system - temp. stability note 4) (c) | ?0.1 | ||
| circulating fluid system - cooling capacity note 3) (kw) | 8.0 (at 20c) | ||
| circulating fluid system - circulating fluid note 2) | aqueous solution of 60% ethylene glycol | ||
| control system | pid control | ||
| cooling method | water-cooled refrigeration |
