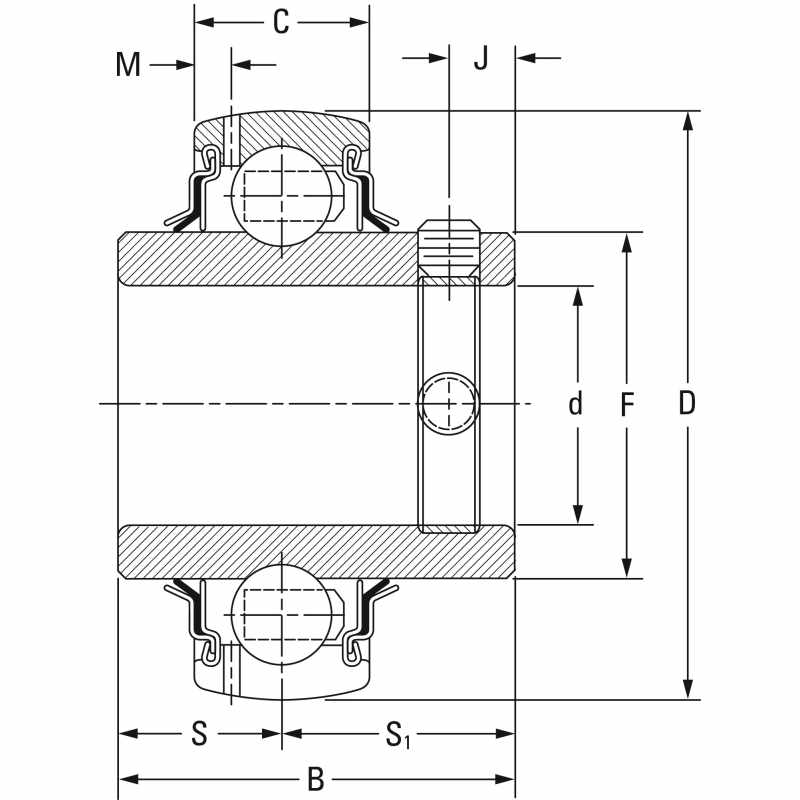

| Angle between Set Screws | 90 º | ||
| Set Screw Size | M10 x 1.5 | ||
| Abmessung J | 10 | ||
| Dimension S1 | 39,67 | mm | |
| Radius r | 0,60 | mm | |
| Inner Ring Width B | 65,07 | mm |
| Number of Set Screws | 2 | ||
| Abmessung M | 5,13 | mm | |
| Abmessung F | 76,48 | mm | |
| Center of Bearing from End S | 25,40 | mm | |
| Outside Ring Width C | 27 | mm | |
| Outside Diameter D | 110 | mm |
| Gewicht | 0,20 | Kg | |
| Sub Series | GY…KRRB | ||
| O.D. Type | Spherical OD | ||
| Material | Bearing Steel | ||
| Bore Type | Cylindrical bore |
| Seal Type | Shroud Seal | ||
| Baureihe | Industrial | ||
| Schmierausführung | Relubricatable | ||
| Bearing Type | Ball Bearing | ||
| Shaft Size d | 2 1/4 in |
