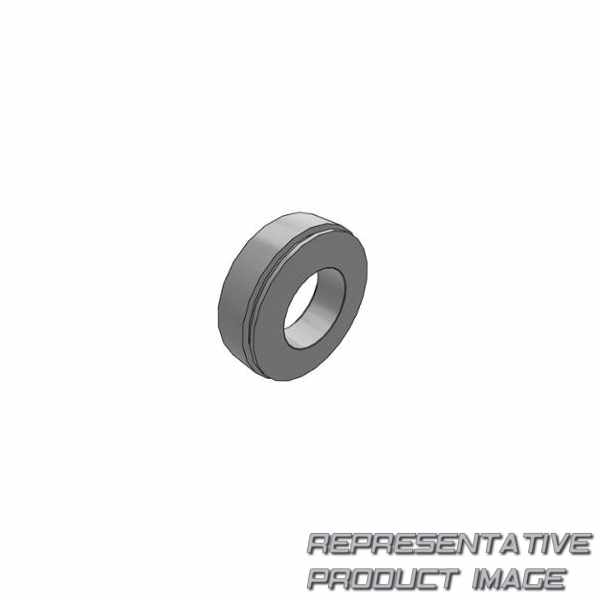

| Bore diameter | d | 120 | mm |
| Nominal width | B | 64 | mm |
| Raceway diameter inner ring (sphere diameter shaft washer) | dk | 250 | mm |
| Bore diameter outer ring (housing washer) | D1 | 145 | mm |
| Height outer ring (housing washer) | C | 50 | mm |
| Distance sphere diameter centre - shaft washer back face (large inner ring side face) | s | 52,50 | mm |
| Außen-Ø | d2 | 230 | mm |
| Angle of tilt | α | 3,40 | ° |
| Outside diameter inner ring (shaft washer) | d1 | 220 | mm |
| Height inner ring (shaft washer) | B | 53,50 | mm |
| chamfer dimension | rmin | min.1 |
