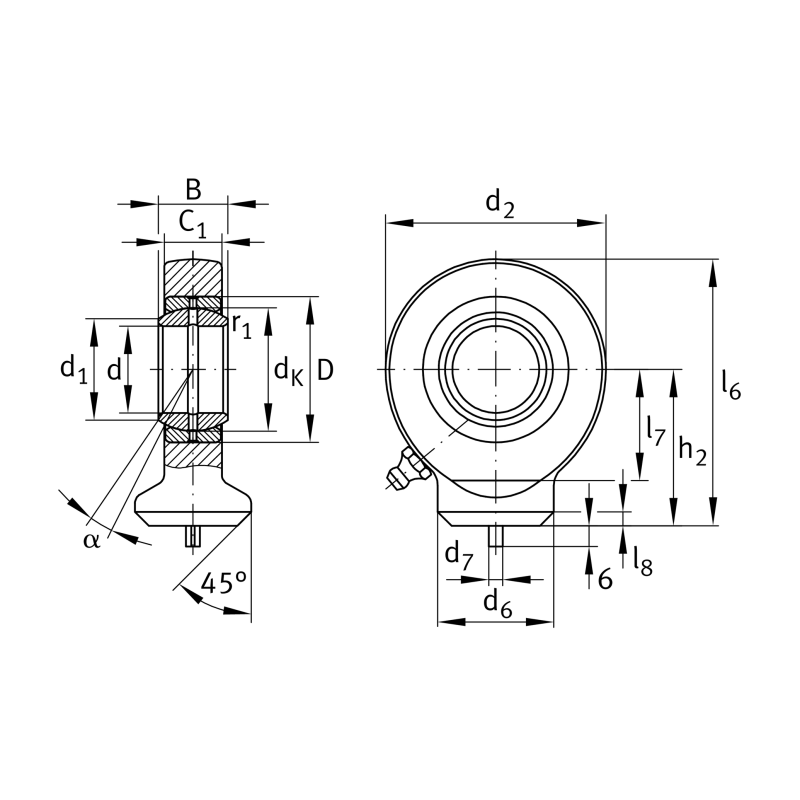

| Bore diameter bearing | d | 30 | mm |
| Width inner ring, | B | 22 | mm |
| Basic static load rating, radial | C0r | 95,700 |
| Outside diameter bearing | D | 47 | mm |
| Basic dynamic load rating, radial | Cr | 62,300 | |
| Radialluft | Gr | 0,037 - 0,1 |
| Edge Spacing | r1smin | 0,60 | mm |
| Ball diameter | dK | 40,70 | mm |
| Outer eye diameter | d2 | 73 | mm |
| Shank Length Welding Head | h2 | 51 | mm |
| Tilt angle | α | 6 | ° |
| Distance drilling with/shaft start | l7 | 37 | mm |
| Centering pin diameter | d7 | 4 | mm |
| Width inner ring, lower tolerance | BUT | -0,12 | mm |
| Outer flange diameter inner ring | d1 | 34,20 | mm |
| Welding Shank Diameter | d 7 | 40 | mm |
| Width of the rod end | C1 | 19 | mm |
| Total length welding head | l6 | 87,50 | mm |
| Chamfer | l8 | 4 | mm |
| Bore diameter bearing, lower tolerance | dUT | -0,01 | mm |
| Hersteller | Teilenummer |
|---|---|
| SKF | SC30 ES (SKF) |
| Pavarini Components | TS30C |
| WSW Wälzlager | WS30C |
